No. 3VKH, METALMAQ, NEW   Our stock number: 4015

No. 3VKH, METALMAQ, NEW

Click on picture below for larger version

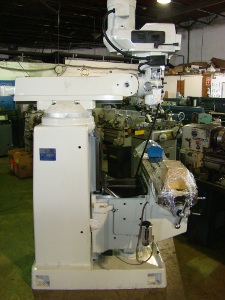

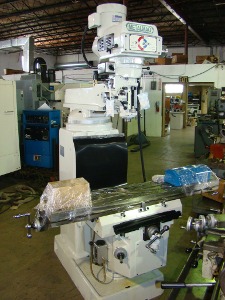

No. 3VKH, METALMAQ, NEW

OPTIONAL ACCESSORIES:
NST #40 spindle instead of standard . . . . . . . . . . . . . . . . $ 1,000.00
EVS Head, 3 HP inverter motor with Yaskawa driver 60-5000 rpm . . . $ 1,600.00
NEWALL DP700 two axis digital readout (installed) . . . . . . . . . $ 2,015.00
NEWALL DP700 three axis digital readout (installed) . . . . . . . . $ 2,735.00
MITUTOYO digimatic quill kit (LED readout for spindle-installed). . 400.00
SERVO 150 lb power feed unit, longitudinal (installed). . . . . . . 1,200.00
BESTLINE AL-500P power feed unit, longitudinal (installed). . . . . 750.00
SERVO 150 lb power feed unit, cross (installed) . . . . . . . . . . 1,280.00
BESTILNE AL-500P power feed unit, cross (installed). . . . . . . . 750.00
SERVO 140 lb power feed unit, knee vertical (installed) . . . . . . 1,250.00
BESTLINE AL-500P power feed unit, knee vert (installed). . . . . . 850.00
12" rotary table (vertical & horizontal). . . . . . . . . . . . . . 1,250.00
Coolant system (installed). . . . . . . . . . . . . . . . . . . . . 720.00
Clamping kit (52 piece) . . . . . . . . . . . . . . . . . . . . . . 120.00
R-8 collet set (11 piece, 1/8" to 3/4") . . . . . . . . . . . . . . 175.00
KURT 6" anglock swivel base vise, 8" opening. . . . . . . . . . . . 895.00
Import 6" angle-lock milling vise . . . . . . . . . . . . . . . . . 405.00
Swivel base for 6" vise . . . . . . . . . . . . . . . . . . . . . . 175.00
Horizontal milling attachment (not installed) . . . . . . . . . . . 1,030.00
Mechanical air power draw bar (installed) . . . . . . . . . . . . . 895.00
4" riser block. . . . . . . . . . . . . . . . . . . . . . . . . . . 560.00
6" riser block. . . . . . . . . . . . . . . . . . . . . . . . . . . 620.00
8" riser block. . . . . . . . . . . . . . . . . . . . . . . . . . . 680.00
58" table in lieu of 54" table. . . . . . . . . . . . . . . . . . . 795.00
Spray mist coolant system installed . . . . . . . . . . . . . . . . 250.00
Quarts light. . . . . . . . . . . . . . . . . . . . . . . . . . . . 200.00
In-bound freight to Miami, FL (stock machine) . . . . . . . . . . . 1,350.00

ELECTRICS: 220/440 volt, 3 phase, 60 Hz.
DELIVERY: From stock, subject to prior sale

STANDARD ACCESSORIES:
ISO-9002 compliant, 3 HP spindle motor, One shot lubricator
Licensed Meehanite casting, Gear housing made of cast iron
Precision hardened & ground square ways--Y & Z axes
Hardened and ground leadscrews--X & Y axes
Turcite-B on slideways, gibs and saddle slideways--X & Y axes
Spindle is made of SCM415 (SAE4115) chrome molybdenum alloy steel,
fully hardened and ground.
Rigid design of spindle automatic feed mechanism
Thrust bearing support on lead screws, Leveling pads,
Strict hand scraping (16 points per square inch)
Two year parts warranty (one year for consumables: ie motor, brake shoes,

springings, belts, bearings, electrical parts, pulleys, etc.)
Tool box, Way covers, One draw bar, Parts and operation manual

SPECIFICATIONS:
Size of table (length x width) 10" x 54" (250mm x 1370mm)
Table to spindle 3.3"-21" (85-535mm)
Hardened & ground ways yes
Longitudinal travel 34" (870mm)
With poer feed 30.5" (775mm)
Cross travel 16" (400mm)
Ram traverse 22" (562mm)
Vertical knee travel 17" (450mm)
Quill traverse 5" (127mm)
Quill power feed rd rate--number 3
--range (ipr) .0015/.003/.006
Spindle taper R-8
Main motor 3 HP
Head moves right to left 90 degrees
Head tilts front to back 45 degrees
Spindle speeds--number infinitely variable
--range 60-4500 rpm
Net weight (approx.) 3,360 lbs. (1500 kgs)
Dimensions (L x W x H) 83.5" x 72.4" x 90"
(2120mm x 1840mm x 2262mm)
