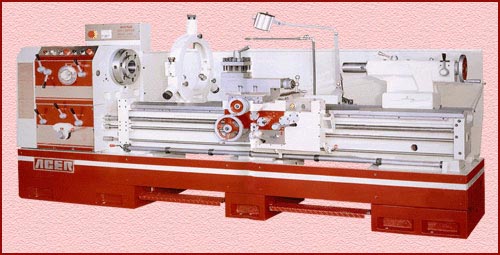

ACER 24" SERIES LATHES   Our stock number: 4043

ACER 24 SERIES LATHES

DYNAMIC 2460. . . $31,000.00 DYNAMIC 24120 $35,900.00
DYNAMIC 2480. . . $32,700.00 DYNAMIC 24160 $40,300.00

OPTIONAL ACCESSORIES:
Bison 12" diameter semi-steel body 3 jaw chuck, direct D1-8 mount
with top two piece jaws . . . . . . . . . . . . . . . . . . . . . 2,000.00
24" 4 jaw independent chuck, D1-11, with direct mount . . . . . . 2,850.00

Taper turning attachment. . . . . . . . . . . . . . . . . . . . . 2,750.00
DORIAN quick change tool post with 4 tool holders (SD50DA-TS) . . 1,600.00

NEWALL two axis "LATHEPAC" digital readout system--installed. 60" 3,150.00
NEWALL two axis "LATHEPAC" digital readout system--installed. 80" 3,650.00
NEWALL two axis "LATHEPAC" digital readout system--installed. 120" 4,450.00
Newall two axis "LATHEPAC" digital readout system--installed. 160" 5,650.00
Estimated freight charge, California to your facility . . . . . . 2,500.00

F.O.B.: California

TERMS: 25% with order, balance before shipment from California


DELIVERY: 90-120 days after receipt of order

FLOOR DIMENSION: 110" x 50", 129" X 50", 169" x 50", 209" x 50"

NET WEIGHT: (7,150 LBS) (7,180 LBS) (8,690 LBS) (9,570 LBS)

STANDARD ACCESSORIES:

Steady rest with roller jaws, follow rest, 20" 4 jaw chuck (D1-11)
20" face plate, Coolant system, halogen light, full lenth splash
guard on 60" and 80" center lathes, followable 34" wide splash guard

on 120" and 160" center lathes. chuck guard with emergency stop,

four way toolpost, 12" adaptor plate, 16" drive plate,
chuck guard with emergency stop, longitudinal carriage stop,
micrometer carriage stop, rapid longitudinal and crossfeed traverse,



Assorted tools, Operation and service manual,






MACHINE FEATURES:
15 HP single speed motor, ampere meter, hardened and ground bedways
inch and metric threading (no gear change required), dual inch/metric
dials on cross slide & compound (inch on longitudinal handwheel, Removable
chip pan, headstock with magnetic clutch & electrical brake.

SPECIFICATION:

Swing over bed 23-5/8"
Swing over the crosslide 15"
Swing over gap 32-1/4"
Distance between centers 60", 80", 120", 160"
Spindle hole 4-1/8"
Spindle nose D1-11 camlock
Spindle speeds--number 12
--range 25 to 1200 rpm
Inch threads--number 45
--range 2 to 56 tpi
Metric threads--number 31
--range 0.5 to 14 mm
Feeds--number
--range (longitudinal) .0012" to .0287"
--range (cross) .0004" to .0118"
Bed width 16-1/2"
Tailstock taper #5 MT
Spindle travel 7"
Spindle diameter 3-1/32"
Main motor power 15 HP


ELECTRICS: 220/440/3/60 HZ
