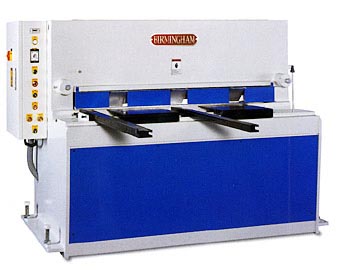

10 Ga. x 48", BIRMINGHAM, No. H-0435, hydraulic, 7.5 HP, NEW   Our stock number: 4054

10 Ga. x 48 , BIRMINGHAM, No. H-0435, hydraulic, 7.5 HP, NEW

Maximum cutting length 48"
Maximum thickness--mild steel 10 gauge
Maximum thickness--stainless steel 13 gauge
Stokes per minute 44-55
Hold-downs--number 8
--pressure 2.5 tons
Back gauge range 24"
Front gauge range 40"
Top blade rake angle--adjustable 1/2 to 2 degrees

Main motor 7.5 HP
Electrics 230/3/60
Shipping weight 4,000 lbs.
Dimensions (L x W x H) 91" x 48" x 63"

Hydraulic adjustable rake angle
Adjustable cutting length and stroke
Hydraulic pressure hold-downs

Choice of jog, single or continuous cutting mode
Worktable equipped with transfer balls
Equipped with remote foot pedal

24" manual back gauge with dual scales and crank wheel

Two 40" front support arms with front setters
One 40" squaring arm with dual scale
Full length finger guard and ahsdow line lighting
HCHC blades--two edge top blade and four edge bottom blade

Inland freight . . . . . . . . . . . . . . . $1,000.00
