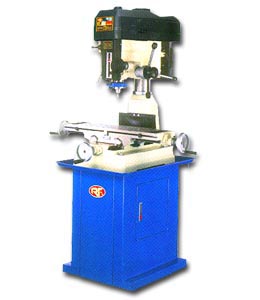

No. RF31, ACRA, 8" x 28" table, 2 HP, NEW (Taiwan)   Our stock number: 4089

No. RF31, ACRA, 8 x 28 table, 2 HP, NEW (Taiwan)

SPECIFICATIONS:
Drilling capacity 1-1/4"
Face mill capacity 3"
End mill capacity 3/4"
Swing 16-3/8"
Max. distance spindle nose-table 18"
Spindle taper R-8
Spindle stroke 5 1/8"
Diameter of spindle sleeve 3"
Head swivel 360 degrees
Diameter of column 4-1/2"
Spindle speeds--number 12
--range 120 to 2500 RPM
Forward/backward travel of table 6 3/4"
Right & left travel of table 18-1/8"
Working area of table 28-3/4" x 8-1/4"
Motor 2 HP
Gross weight 650 lbs.

STANDARD EQUIPMENT:
Push button switch, Carbide tipped face mill, Angle drill press vise,
Drill chuck taper shank, Drill chuck with key

Plus applicable freight of $200.00.
