No. B185, METALMAQ, 12" x 50" tbl, #40 taper, 5 HP, NEW   Our stock number: 4205

No. B185, METALMAQ, 12 x 50 tbl, #40 taper, 5 HP, NEW

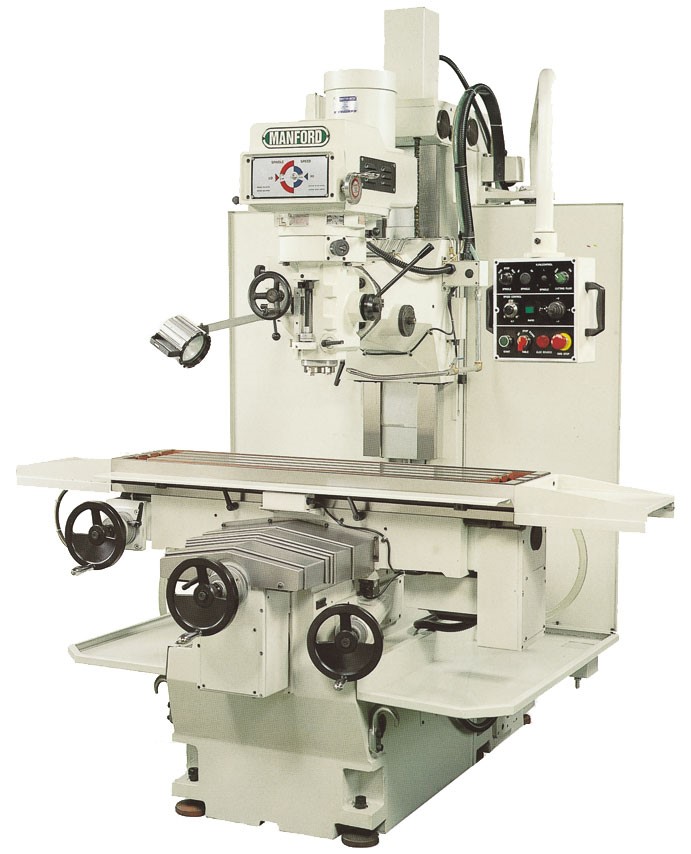

One new METALMAQ model B185VS Bed Mill with standard accessories. . $24,000.00

OPTIONAL ACCESSORIES:
12" x 58" table to provide 41" X travel . . . . . . . . . . . . . . 900.00
Longer column (5.9" extra) which provides 22.8" Z travel. . . . . . 600.00
Z axis C7 double nut 1.26" diameter precision ball screw. . . . . . 1,000.00
Z axis inverter w/driver with brake provides auto-feed on Z . . . . 1,100.00
EVS head by inverter system (5 HP). . . . . . . . . . . . . . . . . 1,800.00
Column splash guard (left & right 2 pieces) . . . . . . . . . . . . 800.00
Air power drawbar . . . . . . . . . . . . . . . . . . . . . . . . . 895.00
NEWALL DP700 2 axis digital readout (installed) . . . . . . . . . . 1,950.00
NEWALL DP700 3 axis digital readout (installed) . . . . . . . . . . 2,700.00

ELECTRICS: 220/440 volt, 3 phase, 60 Hz.
F.O.B.: California

STANDARD ACCESSORIES:
5 HP variable speed head with #40 spindle taper
Quill diameter 4.13", Heavy duty wide saddle 40" support
Hardened and ground 12" x 50" table with ground T-slots
Hardened and ground longitudinal (X), cross (Y) and vertical (Z) axes ways
Ball screws on longitudinal (X) and cross (Y) axes
Automatic longitudinal (X) and cross (Y) feed via AC servo motor
Power lifting motor for table/knee vertical (Z) travel
Box ways on both cross (Y) and vertical (Z) axes
Turcite-B coated XYZ ways, gibs and saddle slideways
Counter-weight on head, Licensed Meehanite casting
Electric box and control panel, Automatic lubrication, Quartz worklight

Coolant system with base tray and column splash guard

SPECIFICATIONS:
Size of table (length x width)--standard 12" x 50" (305mm x 1270mm)
--optional 12" x 58" (305mm x 1450mm)
Longitudinal travel 33" (840mm) STD
w/optional table 41" optional
Cross travel 19.6" (500mm)
Vertical head travel--manual 20" (500mm)
--automatic 17-3/4" (450mm)
--w/ optional 6" 23.6" (600mm)
Quill traverse 5" (127mm)
Quill power feed rate--number 3
--range .0015"--.003"--.006"
(0.04mm--0.08mm--0.14mm)
Spindle taper NST #40
Main motor 5 HP
Head moves right to left 45 degrees
Automatic power feed rate XYZ-stepless 1-47ipm (25mm a 1200mm)
Rapid traverse rate X,Y axes 141 ipm (3600mm/min)
Rapid traverse rate of head (Z)
lifting motor 35.4ipm (900mm/min)
Distance from center of spindle
to the column 22-1/4" (565mm)
Distance from spindle nose to table top
--manual (min-max) 0.8"--20.4" (20mm-520mm)
--automatic (min-max) 1.7"--25.3" (45mm-640mm)
Spindle speeds--number infinitely variable
--range 60 to 5200 rpm
Dimensions (L x W x H) 69" x 88" x 95"
Net weight (approx.) 5,040 lbs. (2250 kgs)
