10 Ga. x 4', BIRMINGHAM, No. VH-410-6, Hydraulic, 5 HP, New   Our stock number: 4444

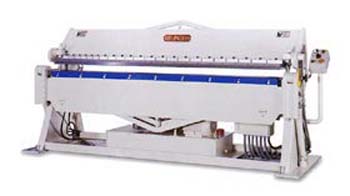

10 Ga. x 4', BIRMINGHAM, No. VH-410-6, Hydraulic, 5 HP, New

SPECIFICATIONS:
Bending length 48" (1200mm)
Gauge capacity--mild steel 10 ga. (3.2mm)
--stainless steel 12 ga. (2.65mm)
Bending angle range 0 to 135 degrees
Beam adjustment 1" (25.4mm)
Beam opening 4" (100mm)
Minimum reverse bend 5/16" (8mm)
Main motor 5 HP
Electrics 220/440/3/60
Shipping weight 4,200 lbs.
Dimensions 83" x 46" x 69"
(2075mm x 1150mm x 1725mm)

EQUIPPED WITH:
Standard fingers: 3 each of 3", 2 each of 4", 5 each of 5", 1 each of 6"
24" manual back gauge with slide and lock
Joy stick control

Freight to Miami is $500.00
