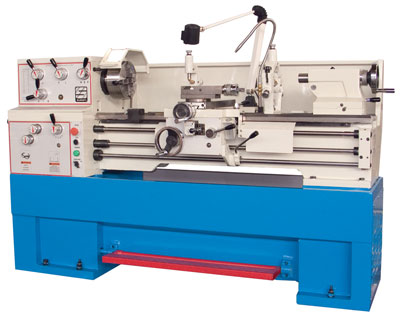

14" x 40" cc, SUMMIT, 3J, 4J, SR, FR, TA, CL, 4WTP, NEW   Our stock number: 4599

14 x 40 cc, SUMMIT, 3J, 4J, SR, FR, TA, CL, 4WTP, NEW

STANDARD ACCESSORIES:
Thread dial, Steady rest, Follow rest, Coolant system,
Taper attachment, 8" dia. 3 jaw chuck with top 2 piece jaws,
8" dia. 4 jaw chuck with solid reversible jaws, Foot brake,
Carriage stop, Four way toolpost and 4 HP main motor,
Inch/metric dials, Halogen worklight, Full length splash guard

OPTIONAL ACCESSORIES:
NEWALL DP700 two axis digital readout system--installed. . . . . . 3,100.00

DORIAN quick change toolpost with five holders . . . . . . . . . . 1,400.00



ELECTRICS: 220/440/volt, 3 phase, 60 Hz.


F.O.B.: Oklahoma City, OK


DELIVERY: From stock, subject to prior sale

SPECCIFICATIONS: SUMMIT MODEL 14 x 40 LATHE
CAPACITIES:
Swing over bed 14" (350mm)
Swing over cross slide 8-1/4" (204mm)
Swing over gap 20" (500mm)
Length of gap 9-1/4" (256mm
Distance between centers 40" (1000mm)

HEADSTOCK:
Spindle speeds--number 12
Spindle speeds--range 40 to 1800 rpm
Hole thru spindle 1-1/2" (37mm)
Spindle nose type D1-4 camlock
Headstock center No 4MT

QUICK CHANGE GEARBOX:
Threads per inch--number 40
--range 4 to 112
Metric threads--number 24
--range 7.5 to 45
Longitudinal feeds--number 40
--range .0011 to .0271
Cross feeds--number 40
--range .0003 to .0090

TAILSTOCK:
Travel of spindle barrel 5" (125mm)
Diameter of spindle barrel 1-3/4" (44mm)
Taper of center #3 MT

BED:
Width of bed 10-1/4" (256mm)
Hardened & ground inserted ways 42-48 Rockwell C

DRIVE & MOTORS:
Main drive motor 4 HP
Coolant pump motor 1/8 HP (0.1 KW)

MISCELLANEOUS:
Steady rest capacity--range 3/8" to 4" (9.5 to 100mm)
Follow rest capacity--range 3/8" to 2-1/2" )9.5 to 64mm)
Centerline height above floor 44" (1118mm)

SHIPPING DATA:
Overall width 36" (900 mm)
Overall height 54" (1350 mm)
Overall length 78" (1988 mm)
Overall weight 2491 lbs (1132kg)
