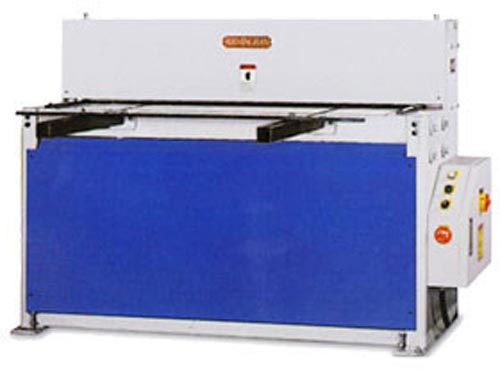

10 Ga. x 52", BIRMINGHAM, No. H-5210, hydraulic, 5 HP, NEW   Our stock number: 4782

10 Ga. x 52 , BIRMINGHAM, No. H-5210, hydraulic, 5 HP, NEW

SPECIFICATIONS:
Maximum cutting length 52"
Maximum thickness--mild steel 10 gauge
Maximum thickness--stainless steel 13 gauge
Strokes per minute 30

Back gauge range 24"
Front gauge range 24"
Top blade rake angle 1 degree, 40 minutes

Main motor 5 HP
Electrics 230/3/60
Shipping weight 3,000 lbs.
Dimensions (L x W x H) 76" x 36" x 55"

STANDARD ACCESSORIES:
Spring hold downs
24" manual back gauge with wheel

Two 24" front support arms
One 40" squaring arm with dual scale
Full length finger guard

HCHC blades--2 edge upper blade & 4 edge bottom blade
Two 14" side gauges (R/L) with dual scales
Removable foot control pedal with safety protection
Electric control selection for single/continuous mode


Inland freight . . . . . . . . . . . . . . . . . . . . . . . . $ 1,000.00
