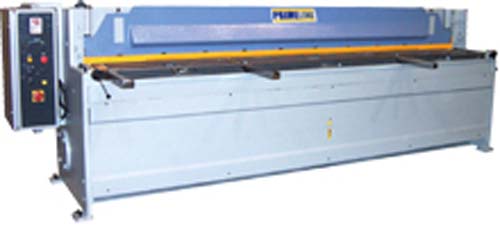

14 Ga. x 120", PRIMELINE, No. 10.14, mechanical, 24" manual back gauge, NEW   Our stock number: 5011

14 Ga. x 120 , PRIMELINE, No. 10.14, mechanical, 24 manual back gauge, NEW

OPTIONAL ACCESSORIES:
Power front operated back gauge with electronic digital readout
in place of standard manual rear operated back gauge. . . . . $ 2,000.00

FEATURES:
Robust, welded steel construction
All moving parts in maintenance-free bearings
Rapid blade gap adjustment
Rigid all-steel plate, welded constuction of frame

SPECIFICATIONS:
Overall cutting length 123"
Maximum capacity--mild steel 14 gauge
--stainless steel 16 gauge
--aluminum 10 gauge
Number of strokes per minute 38
Backguage length 24"
Main motor power 11 HP
Electrics 220/440/3/60
Net weight, approx. 7,500 lbs

EQUIPPED WITH
24" manual rear operated back guage, 40" left-hand squaring arm
Two front support arms, Set of high-carbon high-chrome blades
Solid holddown/finger gaurd with non-slip rubber pads
Virtually noiseless geared brake motor, Low voltage at the controls
Single/inching stroke control, Operating manual and parts list
Movable electrical foot control on a trailing lead
