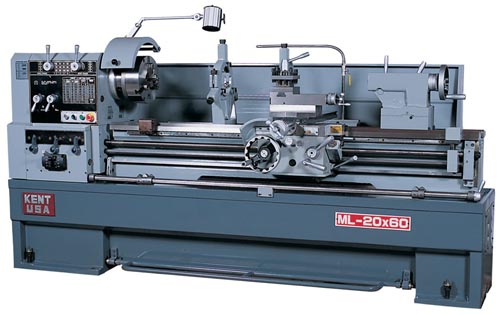

KENT USA 20" x 60" Engine Lathes, 3-1/8" bore, 7.5 HP, NEW   Our stock number: 5362

KENT USA 20 x 60 Engine Lathes, 3-1/8 bore, 7.5 HP, NEW

OPTIONAL ACCESSORIES:
NEWALL two axis DP700 Digital readout system (10" x 60"). . . . . . 3,100.00
American quick change tool post with tool holders . . . . . . . . . 1,695.00
10" 4 jaw chuck with D1-6 camlock . . . . . . . . . . . . . . . . . 795.00
12" face plate. . . . . . . . . . . . . . . . . . . . . . . . . . . 680.00
Taper turning attachment, factory installed only. . . . . . . . . . 1,750.00
Live center with #4MT shank . . . . . . . . . . . . . . . . . . . . 570.00
Micrometer carriage stop. . . . . . . . . . . . . . . . . . . . . . 350.00
Inland freight to Miami . . . . . . . . . . . . . . . . . . . . . . 1,700.00

ELECTRICS: 230/460 volts, 3 phase, 60 Hz.
DELIVERY: In stock, subject to prior sale (6 weeks)

STANDARD ACCESSORRIES:
10" 3 jaw chuck, Steady rest, Follow rest, Chuck cover
Halogen work light, Thread chasing dial, Four way toolpost
Coolant system, Full length splash guard, 3 position carriage stop
Bed mounted carriage stop, 3.125" spindle bore, 7.5 HP motor
Solid full length casting bed with front loading chip tray
Adjustable over-load feed clutches, Quick reversal feed at apron
Full length safety foot brake, Spindle jog button, One shot lube
Dual inch/metric dials with quick change sleeves, Two speed tailstock


SPECIFICATIONS:
Swing over bed 20" (508mm)
Swing over cross slide 14" (353mm)
Swing in gap 27-1/2" (700mm)
Distance between centers 60"
Spindle hole 3-1/8"
Spindle nose D1-6 camlock
Spindle speeds--number 12
--range 36 to 1800 rpm
Inch threads--number 45
--range 2 to 72 tpi
Metric threads--number 39
--range 0.2 to 14 mm
Feeds--number
--range (longitudinal) .0015" to .04"
--range (cross) .00075" to .02"
Bed width 12"
Tailstock taper #4 MT
Spindle travel 5" (130mm)
Spindle diameter 2.3" (59mm)
Main motor power 7.5 HP
Gross weight (approx.) 5390 lbs.
Dimensions (L x W x H) 108" x 39" x 63"
