20", WILLIS-SOLBERGA, #SE2025/PW, 1.1/1.5 HP, geared, 1" cap., 14" x 20" tbl   Our stock number: 5388

20 , WILLIS-SOLBERGA, #SE2025/PW, 1.1/1.5 HP, geared, 1 cap., 14 x 20 tbl

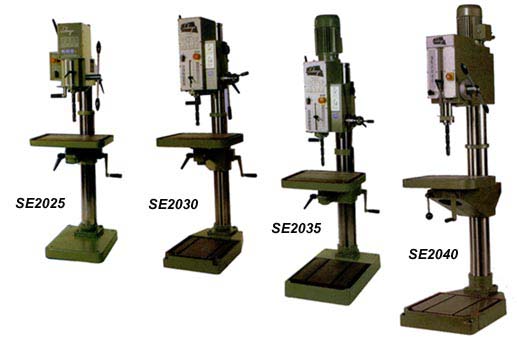

One new WILLIS-SOLBERGA 20" Geared Head Drill Press with manual
feed and standard equipment (#SE2025). . . . . . . . . . . . . $ 4,710.00

One new WILLIS-SOLBERGA 20" Geared Head Drill Press with power
feed and standard equipment (#SE2025PW). . . . . . . . . . . . $ 6,680.00

OPTIONAL ACCESSORIES:
LED worklight . . . . . . . . . . . . . . . . . . . . . . . . . . . 310.00
Foot operated reverse switch. . . . . . . . . . . . . . . . . . . . 890.00
Coolant package . . . . . . . . . . . . . . . . . . . . . . . . . . 780.00
Drill guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350.00
Drill gaurd with microswitch. . . . . . . . . . . . . . . . . . . . 540.00
Drill chuck with arbor, 1/2" capacity, simple type. . . . . . . . . 250.00

SPECIFICATIONS:
Drill capacity in mild steel 1"
Spindle taper #3 MT
Distance center of spindle to column 10"
Quill diameter 2-3/8"
Spindle travel 5"
Spindle speeds--number 8
--range (standard) 130 to 3,480 rpm
Optional power feed rates 0.004, 0.006 or 0.012 IPR
Column diameter 4"
Table size 14" x 20"
Vertical travel of drill head 8"
Vertical travel of table 21"
Maximum distance spindle to table 33"
Main motor 1.1 / 1.5 HP
Approximate weight 400 lbs.

FEATURES:
Adjustable drill head heights on all models

Drill head and table arm can rotate 360 degrees around the column.
Helical drive gears with fiber to steel mesh provide virtual
maintenance free, quite & efficient operation
Quick spindle speed change through gear levers and pole changing switch.
Electrical system includes forward/reverse switch, emergency stop
switch and thermal overload. Also includes a no volt release function.
Built-in tool ejector for rapid tool change.
