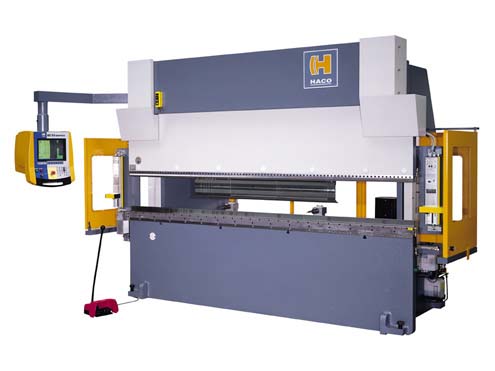

240 Ton, ATLANTIC, No. HDE 240-12-10, 144" BH, 25 HP, New   Our stock number: 5468

240 Ton, ATLANTIC, No. HDE 240-12-10, 144 BH, 25 HP, New

STANDARD ACCESSORIES:
Ram depth control, Tonnage limiting control, Tonnage indicator
Three speed operation: fast approach, slow bending and fast return
Portable foot control with hand grip, two pedal system
Controls mounted on movable pendant, Machine wired 220/440/3/60
Full tank of hydraulic oil, Complete set of manuals

OPTIONAL ACCESSORIES:
Filler block 12'L x 4-1/2"H x 3"W . . . . . . . . . . . . . . . . . $ 2,350.00
Motorized front operated back guage with 2 finger blocks 31" range 5,470.00
Other accessories available

NOTE: Tooling not included. Die riser/clamp not included

SPECIFICATIONS:
Maximum tonnage 240 tons
Maximum bending length 144"
Maximum stroke length 7.8"
Open height 17.7"
Throat depth 11.8"
Distance between housing 124"
Speeds--rapid advance 189 ipm
--press 21 ipm
--return 21 ipm
Motor 25 HP
Dimensions (L x W x H) 152" x 69" x 110"
Weight, approx. 33,220 lbs.
