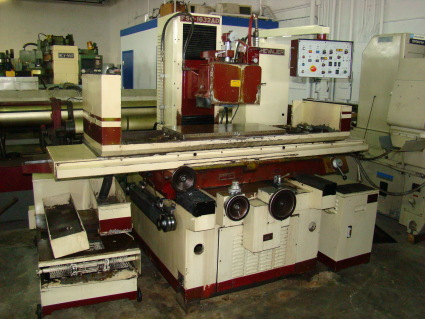

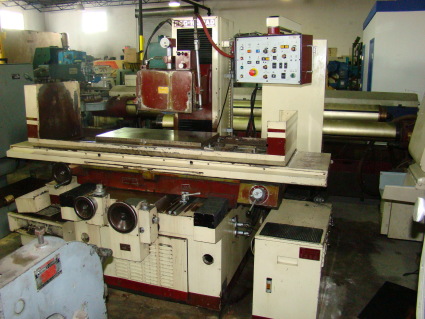

16" x 32", CHEVALIER, #FSG1632AD, 3X auto., EMC, coolant/filter, OTWD, 1988   Our stock number: 5943

16 x 32 , CHEVALIER, #FSG1632AD, 3X auto., EMC, coolant/filter, OTWD, 1988

Click on picture below for larger version
16 x 32 , CHEVALIER, #FSG1632AD, 3X auto., EMC, coolant/filter, OTWD, 198816 x 32 , CHEVALIER, #FSG1632AD, 3X auto., EMC, coolant/filter, OTWD, 198816 x 32 , CHEVALIER, #FSG1632AD, 3X auto., EMC, coolant/filter, OTWD, 1988
16 x 32 , CHEVALIER, #FSG1632AD, 3X auto., EMC, coolant/filter, OTWD, 198816 x 32 , CHEVALIER, #FSG1632AD, 3X auto., EMC, coolant/filter, OTWD, 1988

Model number FSG-1632AD
Year of manufacture 1988

SPECIFICATIONS:
Longitudinal table travel (max) 32"
Crossfeed table travel (max) 16"
Table size 15-3/4" x 31-1/2"
Height without chuck 24-3/8"
Wheel speed 1750 rpm
Grinding wheel (D x W x B) 14" x 2" x 5"
Spindle motor 5 HP
Longitudinal travel, hydraulic 33-7/16"
Table speed, infinitely variable 16 to 82 fpm
Cross travel 16"
Automatic transverse increment 1/8" to 2"
Automatic increment dowfeed--range .00005" to .002"
Micro feed, vertical .00005" & .0001"
Vertical handwheel/div .0005"
Vertical handwheel/revolution .05"
Electrics 220/440/3/60
Net weight, approximate 6,400 lbs.

EQUIPPED WITH:

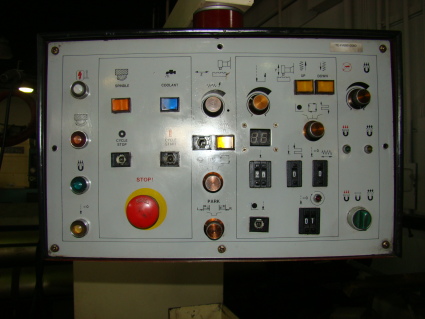

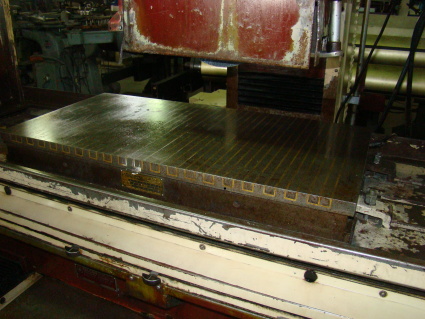

Kanetsu 16" x 32" electro magnetic chuck and control

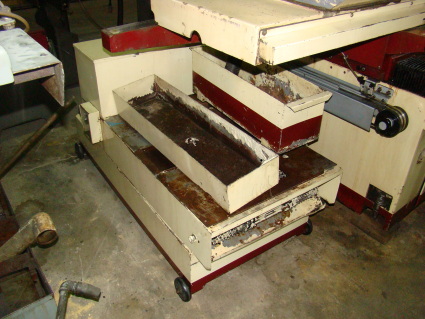

Coolant system with paper filter
Hydraulic over the wheel dresser
