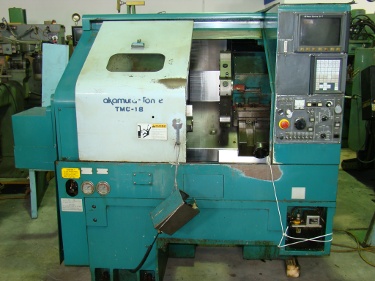

NAKAMURA-TOME, #TMC-18, Fanuc 21-T control, 10 HP, 4500 rpm, 1998   Our stock number: 6079

NAKAMURA-TOME, #TMC-18, Fanuc 21-T control, 10 HP, 4500 rpm, 1998

Click on picture below for larger version
NAKAMURA-TOME, #TMC-18, Fanuc 21-T control, 10 HP, 4500 rpm, 1998NAKAMURA-TOME, #TMC-18, Fanuc 21-T control, 10 HP, 4500 rpm, 1998NAKAMURA-TOME, #TMC-18, Fanuc 21-T control, 10 HP, 4500 rpm, 1998

Year of manufacture 1998

SPECIFICATIONS:
Swing over bed 16" (400mm)
Max diameter turned 11.2" (280mm)
Max turning length 12.2" (305mm)
X-axis travel 10.1" (254mm)
Z-axis travel 12" (300mm)
Spindle nose type A2-6"
Spindle bore 2.3" (58mm)
Bar capacity 2" (51mm)
Tool capacity 10
Spindle drive motor 15 HP (11.19 KW)
Electrics 220/440/3/60 HZ
Spindle speed range 50-4500 RPM
Gross weight 5,300 LBS
Dimensions (L x W x H) 64" x 58" x 64"

EQUIPPED WITH:

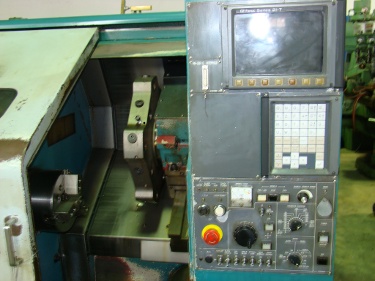

Fanuc 21-T CNC control, Kitigawa 8" 3 jaw chuck
Automatic lubrication, RS232

PRELIMINARY SPECIFICATIONS ARE SUBJECT TO CORRECTION.
