20", WEGOMA #SD500, 10' cutting length, 2 heads, mitre and compound, 3 HP, 1994   Our stock number: 6086

20 , WEGOMA #SD500, 10' cutting length, 2 heads, mitre and compound, 3 HP, 1994

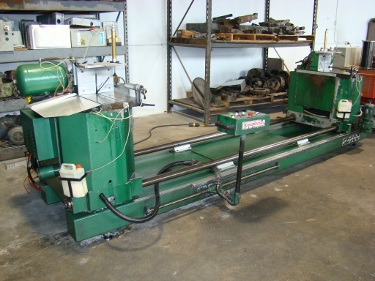

Click on picture below for larger version
20 , WEGOMA #SD500, 10' cutting length, 2 heads, mitre and compound, 3 HP, 199420 , WEGOMA #SD500, 10' cutting length, 2 heads, mitre and compound, 3 HP, 199420 , WEGOMA #SD500, 10' cutting length, 2 heads, mitre and compound, 3 HP, 199420 , WEGOMA #SD500, 10' cutting length, 2 heads, mitre and compound, 3 HP, 1994
20 , WEGOMA #SD500, 10' cutting length, 2 heads, mitre and compound, 3 HP, 199420 , WEGOMA #SD500, 10' cutting length, 2 heads, mitre and compound, 3 HP, 199420 , WEGOMA #SD500, 10' cutting length, 2 heads, mitre and compound, 3 HP, 1994

Model number SD500

SPECIFICATIONS:
Blade capacity 20"
Cut length--maxumum 130"
--minimum 11"
Head swivel 0 to 45 degrees
Cutting capacity (high x width) 5" x 13"
Motor 3 HP
Blade speed 3,450 rpm
Electronics 220/440/3/60/50
Weight, approx 2500 lbs.
Dimensions (L x W x H) 164" x 52" x 60"

EQUIPPED WITH:
Two cutting heads with mitre, Pnuematic tilt adjustment
Pnuematic operated saw heads with adjsutable feed rates via flow controls
Spray mist systems, Pnuematic holddowns, Built-in measuring scale
Left head is fixed, right head has motorized movement
