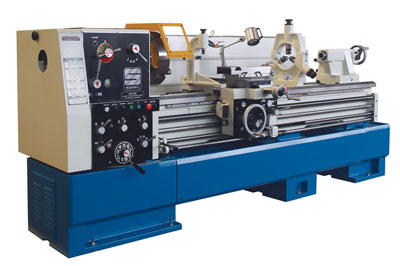

22" x 120" cc, SUMMIT, 4" bore, 3J, 4J, SR, FR, TA, CL, WL, NEW (Taiwan)   Our stock number: 6187

22 x 120 cc, SUMMIT, 4 bore, 3J, 4J, SR, FR, TA, CL, WL, NEW (Taiwan)

STANDARD ACCESSORIES:
Thread dial, Steady rest, Follow rest, Coolant system,
Taper attachment, 15 HP main motor, Removable gap,
12" 3 jaw chuck with top 2 piece jaws, 15-3/4" 4 jaw chuck
4 postion carriage stop, Halogen work light, Clutched headstock,
Inch/metric dials, Halogen worklight, Full length splash guard
Four way rapid traverse, Electric brake

OPTIONAL ACCESSORIES:
NEWALL DP700 two axis digital readout system . . . . . . . . . . . 4,250.00
Installation of NEWALL digital readout system. . . . . . . . . . . 700.00
DORIAN quick change toolpost with five holders . . . . . . . . . . 1,300.00


ELECTRICS: 220/440/volt, 3 phase, 60 Hz.

F.O.B.: Oklahoma City, OK

DELIVERY: From stock, subject to prior sale

SPECCIFICATIONS: SUMMIT MODEL 22 x 120 LATHE
CAPACITIES:
Swing over bed 22" (550 mm)
Swing over cross slide 12-1/2" (313 mm)
Swing over gap 32" (800 mm)
Distance between centers 120" (3000 mm)

HEADSTOCK:
Spindle speeds--number 12
Spindle speeds--range 35 to 1250 rpm
Hole thru spindle 4-1/8" (103 mm)
Spindle nose type D1-8 camlock

QUICK CHANGE GEARBOX:
Threads per inch--number 36
--range 2 to 28
Metric threads--number 65
--range .8 to 14
Longitudinal feeds--number 23
--range .001 to .027
Cross feeds--number 23
--range .0005 to .0135


TAPER ATTACHMENT:
Degrees of taper +/- 10 degrees
Length of taper per setting 16"

TAILSTOCK:
Travel of spindle barrel 6-1/2" (163 mm)
Diameter of spindle barrel 3" (75 mm)
Taper of center #5 MT

BED:
Width of bed 16" (400 mm)
Hardened & ground inserted ways 44-50 Rockwell C

DRIVE & MOTORS:
Main drive motor 15 HP (11.25 KW)
Coolant pump motor 1/4 HP (0.2 KW)

SHIPPING DATA:
Overall width 36" (900 mm)
Overall height 54" (1350 mm)
Overall length 183" (4575 mm)
Overall weight 8800 lbs (4000 kg)
