SECO, No. SK-28SP, 30 degrees tilt, 1 HP, 1" spindle dia., w/ feeder, 2003   Our stock number: 6210

SECO, No. SK-28SP, 30 degrees tilt, 1 HP, 1 spindle dia., w/ feeder, 2003

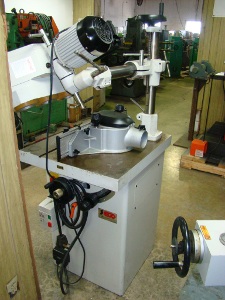

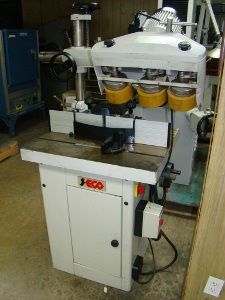

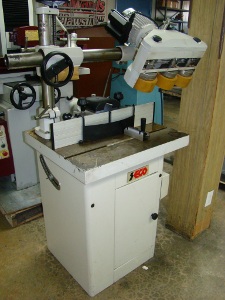

Click on picture below for larger version
SECO, No. SK-28SP, 30 degrees tilt, 1 HP, 1 spindle dia., w/ feeder, 2003SECO, No. SK-28SP, 30 degrees tilt, 1 HP, 1 spindle dia., w/ feeder, 2003

SPECIFICATIONS:
Main motor 3 HP
Spindle diameter 1" (30mm)
Vertical travel of spindle 2-3/4" (70mm)
Maximum depth of cutter 2-3/4" (70mm)
Spindle speeds 3000, 6250 and 9000 rpm
Rotation forward and reverse
Spindle tilt 30 degrees
Table size 26-3/4" x 23-1/4" (680 x 590 mm)
Electrics 220/1/60
Weight 254 lbs

MODEL SK-30FD POWER FEEDER:
Number of feed roller 3
Feed speeds--number 4
--range 13, 26, 36 and 72 ft/min
Motor 1 HP
Eelctrics 220/1/60
Weight 124 lbs.
