KENT USA TRL-1340 Engine Lathes, 1-9/16" bore, 5 HP, NEW (Taiwan)   Our stock number: 6298

KENT USA TRL-1340 Engine Lathes, 1-9/16 bore, 5 HP, NEW (Taiwan)

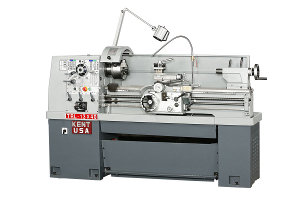

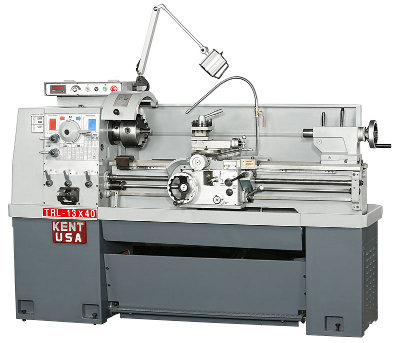

Click on picture below for larger version
KENT USA TRL-1340 Engine Lathes, 1-9/16 bore, 5 HP, NEW (Taiwan)

TRL-1340 Engine Lathe . . . . . . . . . . . . . . . . . . . . . . . $10,950.00
TRL-1340V Electronic Varaible Speed Drive . . . . . . . . . . . . . 13,950.00

OPTIONAL ACCESSORIES:
NEWALL two axis DP700 digital readout system (10" x 40"). . . . . . 2,400.00
8" 4-jaw chuck with D1-4 camlock. . . . . . . . . . . . . . . . . . 550.00
DORIAN quick change tool post with 6 tool holders . . . . . . . . . 1,030.00
5C lever operated collet chuck. . . . . . . . . . . . . . . . . . . 1,085.00
Taper turning attachment. . . . . . . . . . . . . . . . . . . . . . 1,150.00
12" face plate. . . . . . . . . . . . . . . . . . . . . . . . . . . 650.00
Inland freight to Miami (stock machines only) . . . . . . . . . . . 1,000.00

ELECTRICS: 220 volts, 3 phase, 60 Hz. (single phase possible for V model)
F.O.B.: California
DELIVERY: In stock, subject to prior sale

OUTSTANDING FEATURES:
Heaviest duty 13" lathe in its class,5 HP main spindle motor,
16 speeds, all geared headstock for TRL-1340 lathe
Hi/Low geared speed rangesfor TRL-1340V lathe (single phase capable)
Jog button for easy gear changes, Hardened and ground gears and bedways
Cast iron machine bedways and base, Foot brake and T-slotted compound
Inch/metric ruler on tailstock quill, Inch/metric readings on dials
Removable chip pan for easy clean up, ISO 9001 certified manufacturer

STANDARD ACCESSORRIES:
7" 3 jaw chuck, Steady rest, Follow rest, Four way toolpost,
Halogen work light, Thread chasing dial, Coolant system
Full length splash guard, Toolbox with standard tools

SPECIFICATIONS:
Swing over bed 13-3/8" (340mm)
Swing over cross slide 8-1/4" (210mm)
Swing in gap 20" (508mm)
Distance between centers 40" (1000mm)
Spindle hole 1-9/16" (40mm)
Spindle nose D1-4 camlock
Spindle speeds--number 16 or infinately variable
--range 50 to 2570 or 100 to 3000 rpm
Inch threads--number 45
--range 2 to 72 tpi
Metric threads--number 39
--range 0.2 to 14 mm
Feeds--number
--range (longitudinal) .002" to .067"
--range (cross) .001" to .0375"
Bed width 9" (230mm)
Tailstock taper #3 MT
Quill travel 4" (105mm)
Quill diameter 2" (50mm)
Main motor power 5 HP
Gross weight (approx.) 2,440 lbs.
Dimensions (L x W x H) 90" x 37" x 60"
