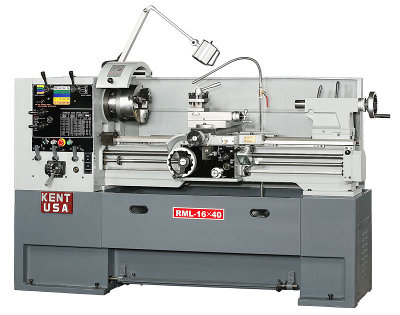

KENT USA RML-1640T Engine Lathes, 2-1/16" bore, 5 HP, NEW (Taiwan)   Our stock number: 6300

KENT USA RML-1640T Engine Lathes, 2-1/16 bore, 5 HP, NEW (Taiwan)

OPTIONAL ACCESSORIES:
NEWALL two axis DP700 digital readout system (10" x 40"). . . . . . 2,500.00
10" 4-jaw chuck with D1-6 camlock . . . . . . . . . . . . . . . . . 680.00
Micrometer stop . . . . . . . . . . . . . . . . . . . . . . . . . . 350.00
DORIAN quick change tool post with 6 tool holders . . . . . . . . . 1,250.00
5C lever operated collet chuck. . . . . . . . . . . . . . . . . . . 1,195.00
Taper turning attachment. . . . . . . . . . . . . . . . . . . . . . 1,395.00
12" face plate. . . . . . . . . . . . . . . . . . . . . . . . . . . 695.00
Inland freight to Miami (stock machines only) . . . . . . . . . . . 1,000.00

ELECTRICS: 220/440 volts, 3 phase, 60 Hz.
F.O.B.: California
DELIVERY: In stock, subject to prior sale

OUTSTANDING FEATURES:
5 HP main spindle motor, 36 to 1800, 12 steps spindle speeds
Hardened and ground gears and bedways, Foot brake and T-slotted compound
Cast iron machine bedways with full one piece cast base and front
loading chip tray for easier cleaning
Inch/metric ruler on tailstock quill, Inch/metric readings on dials
ISO 9001 certified manufacturer

STANDARD ACCESSORRIES:
9" 3 jaw chuck, Steady rest, Follow rest, Four way toolpost,
Halogen work light, Thread chasing dial, Carriage stop, Coolant system
Chuck cover, Full length splash guard, Toolbox with standard tools


SPECIFICATIONS:
Swing over bed 16-3/16" (410mm)
Swing over cross slide 10-3/8" (264mm)
Swing in gap 23" (584mm)
Distance between centers 40" (1000mm)
Spindle hole 2-1/16" (52.5mm)
Spindle nose D1-6 camlock
Spindle speeds--number 12
--range 36 to 1800 rpm
Inch threads--number 45
--range 2 to 72 tpi
Metric threads--number 39
--range 0.2 to 14 mm
Feeds--number
--range (longitudinal) .002" to .067"
--range (cross) .001" to .034"
Bed width 10-1/4" (260mm)
Tailstock taper #4 MT
Quill travel 6" (155mm)
Quill diameter 2" (52mm)
Main motor power 5 HP
Gross weight (approx.) 3,960 lbs.
Dimensions (L x W x H) 87" x 42" x 66"
