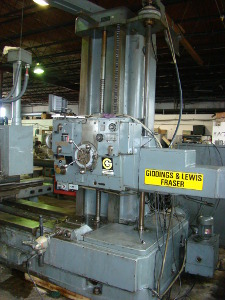

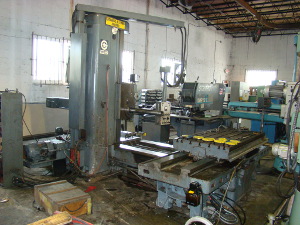

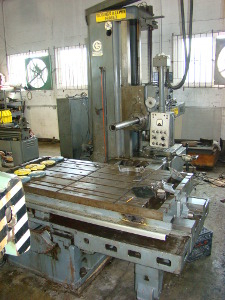

4" G & L FRASER, #70A-DP4-T, 36" X 72" table, 56"long 62"cross, #50 NST, DRO,'69   Our stock number: 6454

4 G & L FRASER, #70A-DP4-T, 36 X 72 table, 56 long 62 cross, #50 NST, DRO,'69

Click on picture below for larger version
4 G & L FRASER, #70A-DP4-T, 36 X 72 table, 56 long 62 cross, #50 NST, DRO,'694 G & L FRASER, #70A-DP4-T, 36 X 72 table, 56 long 62 cross, #50 NST, DRO,'694 G & L FRASER, #70A-DP4-T, 36 X 72 table, 56 long 62 cross, #50 NST, DRO,'694 G & L FRASER, #70A-DP4-T, 36 X 72 table, 56 long 62 cross, #50 NST, DRO,'69
4 G & L FRASER, #70A-DP4-T, 36 X 72 table, 56 long 62 cross, #50 NST, DRO,'694 G & L FRASER, #70A-DP4-T, 36 X 72 table, 56 long 62 cross, #50 NST, DRO,'694 G & L FRASER, #70A-DP4-T, 36 X 72 table, 56 long 62 cross, #50 NST, DRO,'69

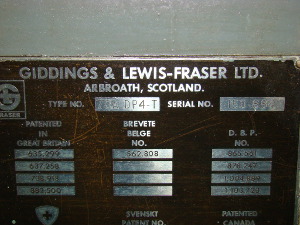

Model number 70A-DP4-T

SPECIFICATION:

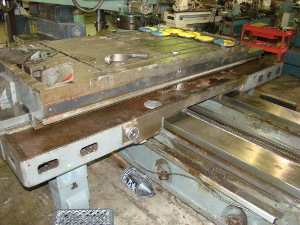

Rotary table size 36" x 72"
Travels--longitudinal 56"
--cross 62"
--vertical 50"
--Spindle 30"
Feeds--boring--number 33
--range 0.002 to 0.250 ipr

Spindle speed--number 43
--range 10 to 1300 rpm
Diameter of spindle 4"
Morse taper of spindle #50 NST
Main motor 20 HP
Electrics 415/3/60
Weight approximate 30,400 lbs
Dimensions (L x W x H) 14' x 111" x 126"

EQUIPPED WITH:

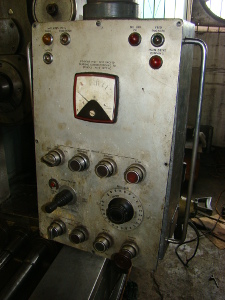

Rapids in all directions, Pendant control, Assorted tooling and holders

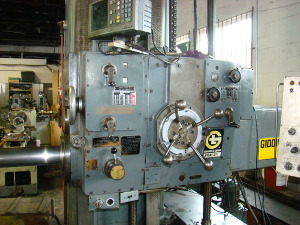

Acu-Rite 3 axis digital readout system, Out riggers

OPTIONS AVAILABLE FOR MACHINE AT EXTRA COST:
Rotary table, Spindle support
