GMC GT-2060 or GT-2080, 10 HP, 4" bore,3J, 4J, CL, FP, 4WTP, TA, WL, brake, New   Our stock number: 6550

GMC GT-2060 or GT-2080, 10 HP, 4 bore,3J, 4J, CL, FP, 4WTP, TA, WL, brake, New

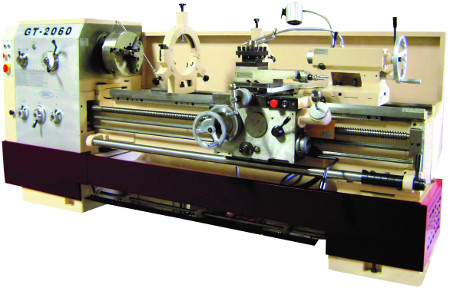

Click on picture below for larger version
GMC GT-2060 or GT-2080, 10 HP, 4 bore,3J, 4J, CL, FP, 4WTP, TA, WL, brake, New

OPTIONAL ACCESSORIES:
SINO digital readout system, installed . . . . . . . . . . . . . . $ 1,250.00
80" center lathe instead of 60". . . . . . . . . . . . . . . . . . 1,000.00
Inland freight to Miami, FL. . . . . . . . . . . . . . . . . . . . 1,250.00

STANDARD ACCESSORIES:
ISO 9001 certified, Large 4-1/8" spindle bore
Adjustable mechnical clutch for spindle start forward/reverse and brake
4 way rapid traverse on logitudinal and cross ways
All dual inch/metric dials, Solid cast iron base, Removable gap
Motor: 10 HP 220/440 volts / 3 phase,

12" 3 jaw chuck with D1-8 direct mount
16" 4 jaw chuck with D1-8 direct mount
26" Face plate, Splash guard, Steady rest, Follow rest
Centers and sleeve, Tool box, Four sided toolpost, Coolant system
Work light, Thread chasing dial, Taper attachment
Misc. wrenches and tools, Operation & parts manual
Full length foot brake, Full length splash guard

SPECIFICATIONS:
Swing over bed 20"
Swing over cross slide 12"
Swing over gap 28"
Length of gap 9"
Distance between centers 60"/80"
Width of bed 15-1/2"
Hole thru spindle 4-1/8"
Spindle nose D1-8 camlock
Spindle speeds--number 12
--range 36 to 1600
Inch threads--number 25
--range 2 to 28 tpi
Metric threads--numbe 22
--range 1 to 14 mm
Tailstock spindle travel 6"
Tailstock taper #5 MT
Motor HP 10 HP
Coolant pump motor 1/8 HP
Electrics 220/440/3ph/60Hz
Net weight--40" cc/60"cc 8100/8350 lbs
Dimensions (L x W x H)--60" cc 106" x 43" x 63"
--80" cc 123" x 43" x 63"
