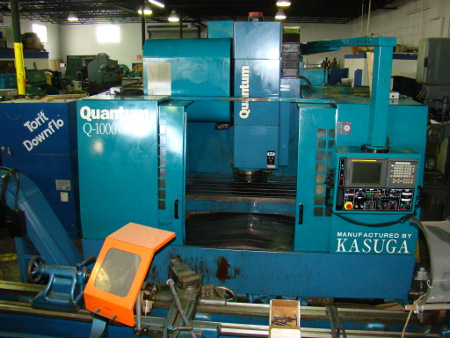

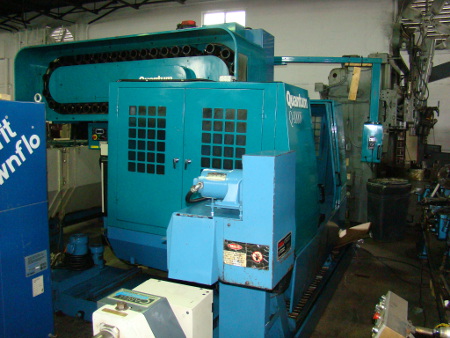

42"X, 24"Y, 25.6"Z, KASUGA, Q-1000VS, #50, 40 ATC, 30 HP, 12K, Fanuc 18iMB, '01   Our stock number: 6593

42 X, 24 Y, 25.6 Z, KASUGA, Q-1000VS, #50, 40 ATC, 30 HP, 12K, Fanuc 18iMB, '01

Click on picture below for larger version
42 X, 24 Y, 25.6 Z, KASUGA, Q-1000VS, #50, 40 ATC, 30 HP, 12K, Fanuc 18iMB, '0142 X, 24 Y, 25.6 Z, KASUGA, Q-1000VS, #50, 40 ATC, 30 HP, 12K, Fanuc 18iMB, '0142 X, 24 Y, 25.6 Z, KASUGA, Q-1000VS, #50, 40 ATC, 30 HP, 12K, Fanuc 18iMB, '01
42 X, 24 Y, 25.6 Z, KASUGA, Q-1000VS, #50, 40 ATC, 30 HP, 12K, Fanuc 18iMB, '0142 X, 24 Y, 25.6 Z, KASUGA, Q-1000VS, #50, 40 ATC, 30 HP, 12K, Fanuc 18iMB, '0142 X, 24 Y, 25.6 Z, KASUGA, Q-1000VS, #50, 40 ATC, 30 HP, 12K, Fanuc 18iMB, '01

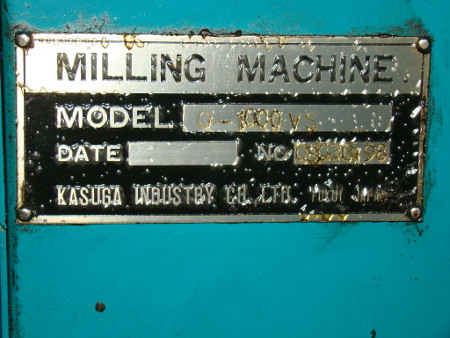

Model number Quantum Q-1000VS
Year of manufacture 2001

SPECIFICATIONS:
Table size 55" X 23.6"
Maximum long. X-axis 42"
Cross travel, Y-axis 24"
Vertical travel, z-axis 25.6"
Spindle drive motor 30 HP
Spindle speed range min - max 50 to 12,000 RPM

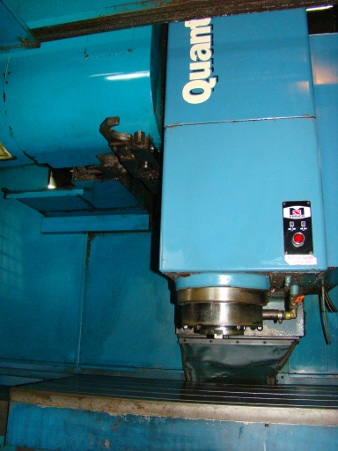

Spindle taper CAT #50

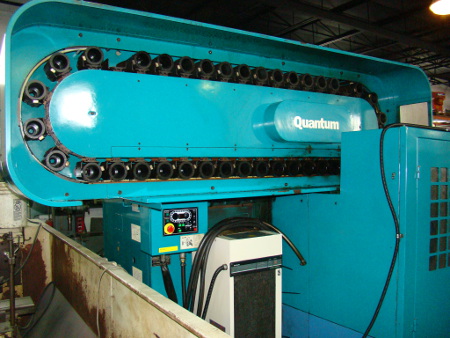

Tool storage capacity 40 tool swing arm
Way system box ways
Electrics 220/3/60 HZ
Machine dimensions (L x W x H) 181" x 131" x 120"
Machine weight, approx 18,632 lbs.

EQUIPPED WITH:

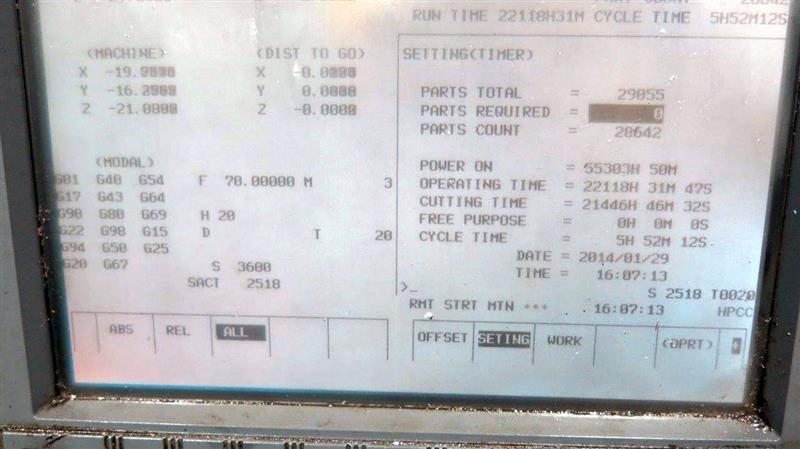

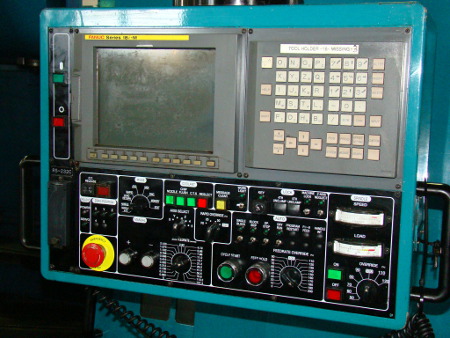

Fanuc 18iMB control, Rigid tapping, Remote jog handle, 64 bit processor
G-code, Chip conveyor, HPCC software (High Precision Contour Control)
Chip conveyor, Prepped for 1000 psi thru-spindle coolant, 12,000 spindle
All available manuals
