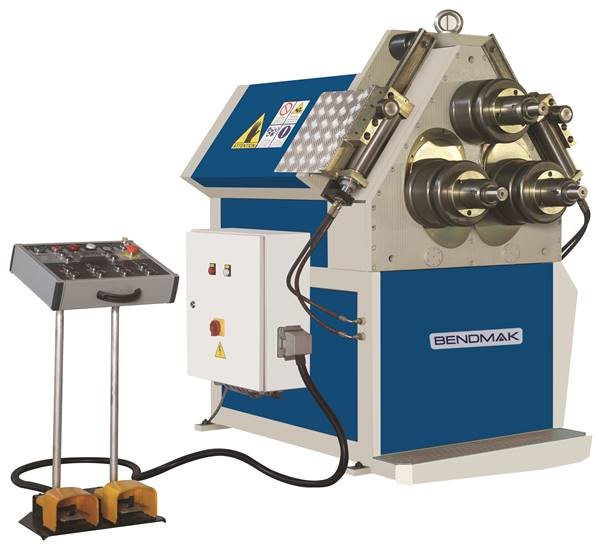

BENDMAK, 3" x 3" x 3/8", PRO-80, hyd, 3 rolls driven, 7.5. DP design, NEW   Our stock number: 6623

BENDMAK, 3 x 3 x 3/8 , PRO-80, hyd, 3 rolls driven, 7.5. DP design, NEW

OPTIONAL ACCESSORIES:
Digital readout indicating position of adjustment top roll. . . N/C
Manually operated, four directional guide rolls including
leg-in angle attachment. . . . . . . . . . . . . . . . . . $ included

TECHNICAL SPECIFICATIONS:
Shaft diameters--top 3.15"
--lower 3.15"
Diameter of dies 9.65"
Drive motor 7.5 HP total
Powered rolls All three driven
Position repeat LED readout
Operating position horizontal/vertical
Rolling speed 16' per minute
Pipe capacity 3" SCH 40 - 64" radius
Angle capacity 3" x 3" x 3/8" - 64" radius
Electrics 220/440/3/60
Dimensions 51" x 55" x 53"H
Approximate weight 3,950 lbs

BENDING CAPACITIES: See descriptive brochure

STANDARD FEATURES
One set of standard hardened tooling
All three rolls driven
Automatic surface speed compensation between top and lower rolls
Forward and reverse rotation controlled by foot pedal
Double-pinch design reducing end flats and permitting single part entry
Two lower rolls hydraulically adjustable directly from operator's console
Digital readout indicating position of adjustable top roll
Operator controls located in a movable type console
Manually adjustable guide rolls to take the twist out of most rolled sections
Vertical or horizontal rolling operation
Emergency stop button located on the operator's console
Electrical box with "lock-out" disconnect manufactured in accordance
to "CE" regulations
