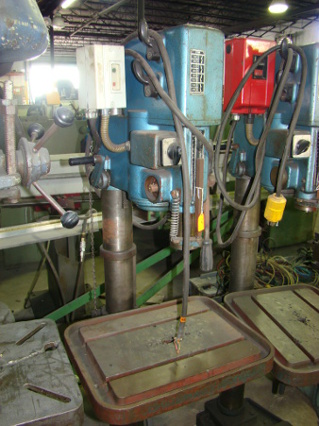

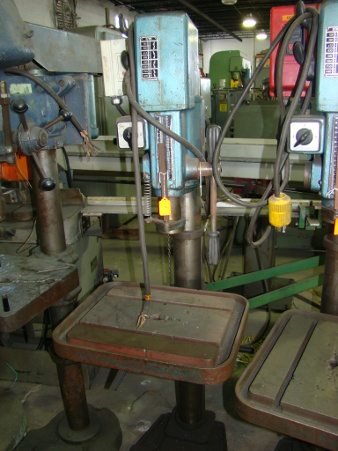

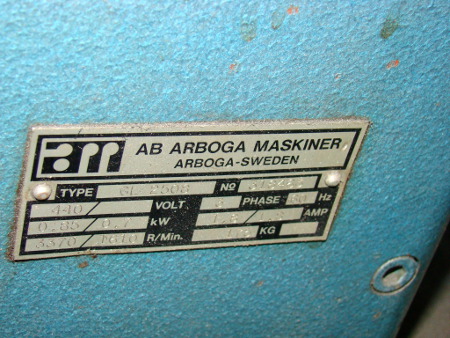

24", ARBOGA, #GL2508, 1-1/4" cap, geared, #3MT, 16" x 20" tbl., manual, 318463   Our stock number: 6721

24 , ARBOGA, #GL2508, 1-1/4 cap, geared, #3MT, 16 x 20 tbl., manual, 318463

Click on picture below for larger version
24 , ARBOGA, #GL2508, 1-1/4 cap, geared, #3MT, 16 x 20 tbl., manual, 31846324 , ARBOGA, #GL2508, 1-1/4 cap, geared, #3MT, 16 x 20 tbl., manual, 31846324 , ARBOGA, #GL2508, 1-1/4 cap, geared, #3MT, 16 x 20 tbl., manual, 318463

SPECIFICATIONS:
Drills to center 24"
Drilling capacity--mild steel 1-1/4"
--cast iron 1-1/2"

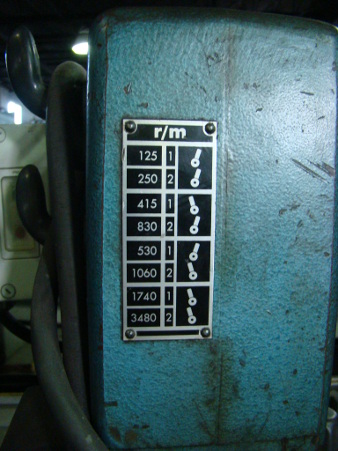

Spindle speeds--number 8
--range 125 to 3480 rpm
Spindle taper #3MT
Spindle diameter 2-3/8"
Maximum quill travel 6"
Maximum distance spindle nose to table 36-1/2"
Column diameter 4"
Table size 20" x 16"
Vertical movement of table 24-1/2"
Spindle motor (two speed) 1.1 HP / 0.95 HP
Electrics 440/3/60
Net weight 500 lbs
Dimensions (L x W x H) 27" x 20" x 69"

EQUIPPED WITH:
Head raising mechanism, Table raising mechanism, Geared head
