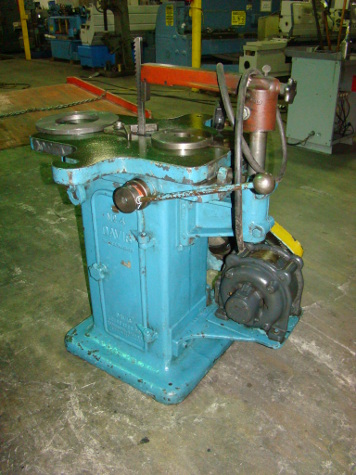

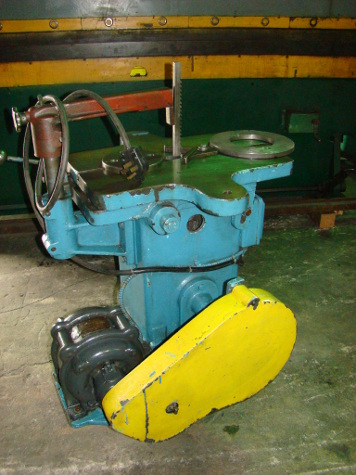

3/4" W. x 8" L., DAVIS, No. 4, 2 HP, tilting table, misc. tooling   Our stock number: 6725

3/4 W. x 8 L., DAVIS, No. 4, 2 HP, tilting table, misc. tooling

Click on picture below for larger version
3/4 W. x 8 L., DAVIS, No. 4, 2 HP, tilting table, misc. tooling3/4 W. x 8 L., DAVIS, No. 4, 2 HP, tilting table, misc. tooling3/4 W. x 8 L., DAVIS, No. 4, 2 HP, tilting table, misc. tooling

SPECIFICATIONS:
Keyway cutting capacity in mild steel 1/16" to 3/4"
Throat depth face of cutter to arm post 15-1/4"
Max. height of work from table surface 8"
Table size 24-1/2" x 26-1/2"
Table movement 1-1/8"
Maximum length of cut with 3/4"
high bushing holder--16" long cutter 3"
--20" long cutter 7"
Strokes per minute with 1200 rpm motor 34
Motor 2 HP
Electrics 220/440/3/60
Number of T-slots in table 1
Net weight with motor (approx.) 1000 lbs.
Dimensions (L x W x H) 36" x 36" x 44"

EQUIPPED WITH:

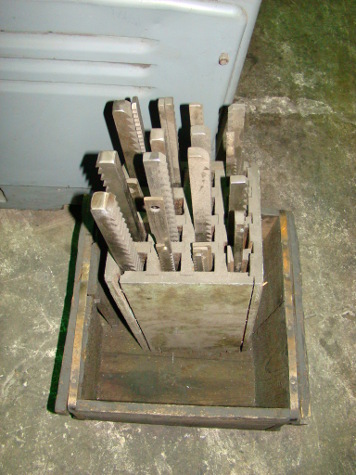

Box full of cutters, Kwik-klamp locking device
Tilting table for cutting tapered keyways
Kwik-klamp locking device
