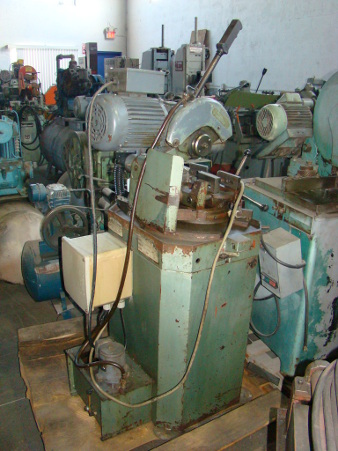

12", SOCO, No. MC-275F, manual, 30/60 rpm, swivel head, 1994   Our stock number: 6736

12 , SOCO, No. MC-275F, manual, 30/60 rpm, swivel head, 1994

Click on picture below for larger version
12 , SOCO, No. MC-275F, manual, 30/60 rpm, swivel head, 1994

Model number MC-275F
Year of manufacture 1994

SPECIFICATIONS:
Maximum blade diameter 12" (300mm)
Capacities @90 degrees w/12" blade--round 3-1/4" (81mm)
--square 3" x 3" (75mm x 75mm)
--rect 3-1/4" x 3" (81mm x 75mm)
--round (solid) 2-1/2" (63mm)
--square (solid) 1-5/8" x 1-5/8" (41mm x 41mm)
Maximum vise opening 4" (100mm)
Cutting speeds 30/60 rpm
Main motor 1.4 / 1 HP
Electrics 220/3/60
Weight, approx. 396 lbs. (180 kgs)

EQUIPPED WITH:
Maually operated saw head & vise, Auto built-in coolant system
Dual clamping vises with self center clamping
Saw head can be mitered either direction, L-45 and R-60 degrees
