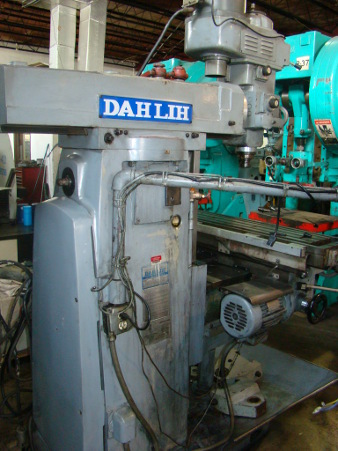

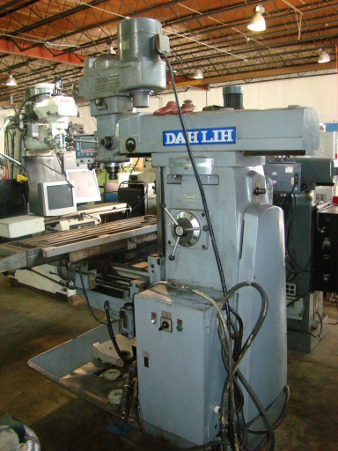

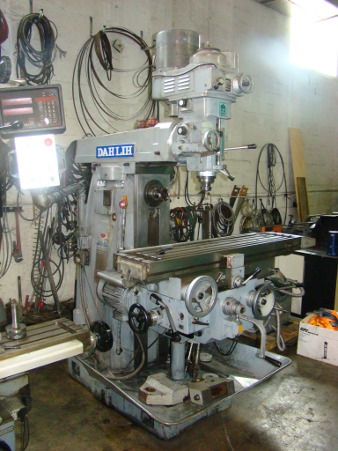

DAHLIH, #GH2200, #50 horz. spindle, #40 turret head, DRO, auto feed, 1988   Our stock number: 6747

DAHLIH, #GH2200, #50 horz. spindle, #40 turret head, DRO, auto feed, 1988

Click on picture below for larger version
DAHLIH, #GH2200, #50 horz. spindle, #40 turret head, DRO, auto feed, 1988DAHLIH, #GH2200, #50 horz. spindle, #40 turret head, DRO, auto feed, 1988DAHLIH, #GH2200, #50 horz. spindle, #40 turret head, DRO, auto feed, 1988DAHLIH, #GH2200, #50 horz. spindle, #40 turret head, DRO, auto feed, 1988
DAHLIH, #GH2200, #50 horz. spindle, #40 turret head, DRO, auto feed, 1988DAHLIH, #GH2200, #50 horz. spindle, #40 turret head, DRO, auto feed, 1988DAHLIH, #GH2200, #50 horz. spindle, #40 turret head, DRO, auto feed, 1988

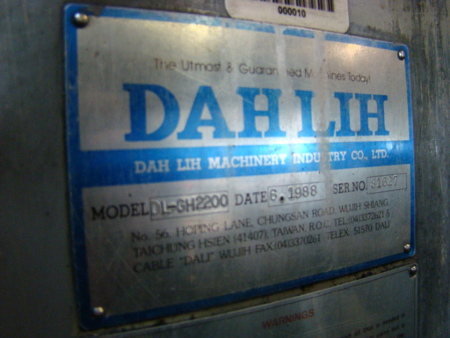

Model GH2200
Year of Manufacture 1988

SPECIFICATIONS:

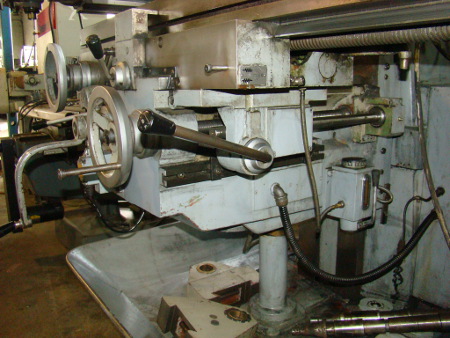

Table working size 51.2" x 11"
Table travel--longitudinal 39.4"
--cross 14.2"
--vertical 17.7"
Table feeds--number
--longitudinal & cross .6 to 27.5 ipm
Rapid traverse--longitudinal & cross 118 ipm
--vertical 31 ipm


HORIZONTAL SPINDLE:
Spindle taper #50 taper
Number of speeds 9
Range of speeds 85 to 1300 rpm
Main spindle motor 3 HP

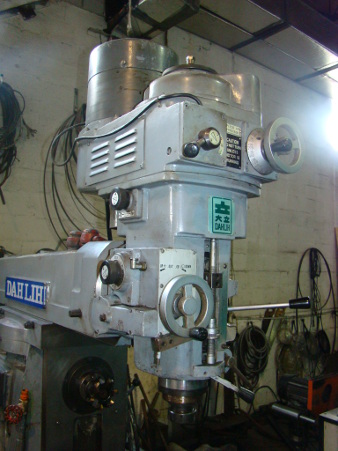

VERTICAL SPINDLE:
Main motor 5 HP
Number of speeds Variable
Range of speeds 80 to 3,800 rpm
Spindle nose taper #40 taper
Quill feeds, 3 .0014, .0028 & .0056 ipr
Quill travel 5-1/2"
Swivelling angle of head (left & right) 90 degrees

Electrics 220/440/3/60
Machine weight 5,720 lbs
Dimensions (L x W x H) 74" x 62" x 94"

EQUIPPED WITH:

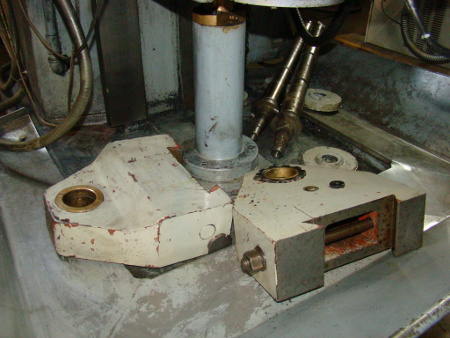

Horizontal arbor supports with arbor, Pendant control
Coolant system, One shot lubrication

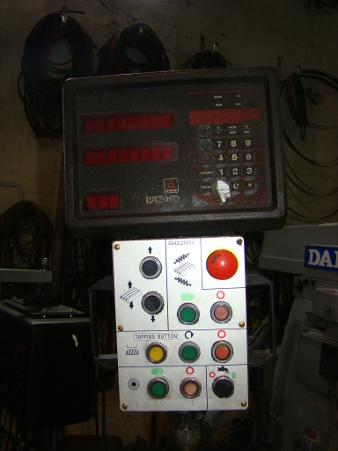

Anilam 2 axis digital readout system
