18", ARBOGA, No. G2508, 1-1/4" cap., geared, #3MT, 18" x 25" tbl., manual feed   Our stock number: 6781

18 , ARBOGA, No. G2508, 1-1/4 cap., geared, #3MT, 18 x 25 tbl., manual feed

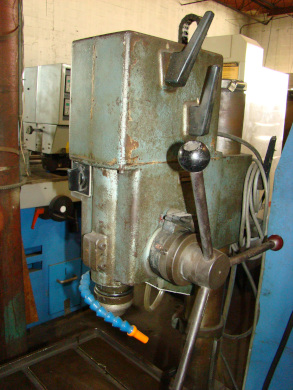

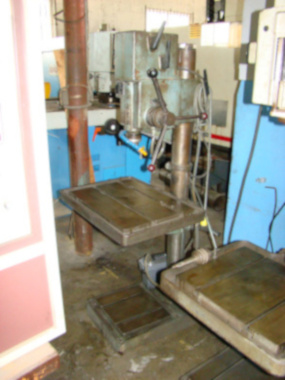

Click on picture below for larger version
18 , ARBOGA, No. G2508, 1-1/4 cap., geared, #3MT, 18 x 25 tbl., manual feed18 , ARBOGA, No. G2508, 1-1/4 cap., geared, #3MT, 18 x 25 tbl., manual feed

SPECIFICATIONS:
Drilling capacity--mild steel 1-1/4"
--cast iron 1-1/2"
Distance from spindle center to column 9"
Spindle speeds--number 8
--range 100-2900 rpm
Spindle taper #3MT
Spindle diameter 2-3/8"
Maximum quill movement 4-1/2"
Maximum distance spindle nose to table 37-1/2"
Column diameter 4"
Table size 25" x 18"
Spindle motor (two speed) 1.6 HP / 1.3 HP
Motor speeds 3420/1690 rpm
Electrics 220/3/60
Net weight 500 lbs

EQUIPPED WITH:
Head raising mechanism, Table raising mechanism
