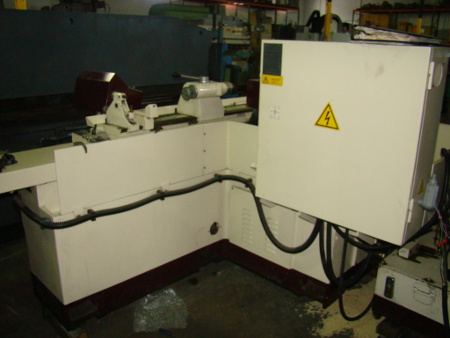

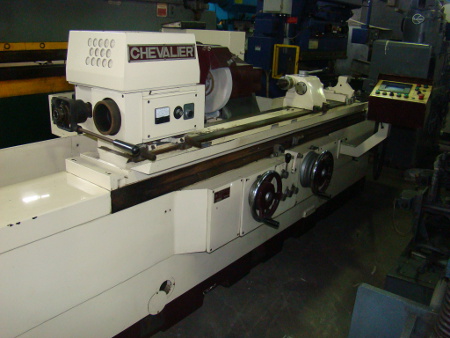

12" x 60", CHEVALIER, #CG-1260A, workhead, CL, 1999   Our stock number: 6790

12 x 60 , CHEVALIER, #CG-1260A, workhead, CL, 1999

Click on picture below for larger version
12 x 60 , CHEVALIER, #CG-1260A, workhead, CL, 199912 x 60 , CHEVALIER, #CG-1260A, workhead, CL, 199912 x 60 , CHEVALIER, #CG-1260A, workhead, CL, 199912 x 60 , CHEVALIER, #CG-1260A, workhead, CL, 1999
12 x 60 , CHEVALIER, #CG-1260A, workhead, CL, 199912 x 60 , CHEVALIER, #CG-1260A, workhead, CL, 199912 x 60 , CHEVALIER, #CG-1260A, workhead, CL, 199912 x 60 , CHEVALIER, #CG-1260A, workhead, CL, 1999

Model number CG-1260A
Year of manufacture 1999

SPECIFICATIONS:
Maximum diameter 11.18" (300mm)
Distance between centers 60" (1500mm)
Grinding wheel--OD x W x bore 16" x 2" x 5"
Wheel head motor 5 HP
Internal griding attachment motor 2 HP
Hydraulic motor 2 HP
Workhead speeds--number variable speed
--range 25 to 350 rpm
Workhead spindle taper #4MT
Tailstock taper #4MT
Table traverse speeds--number variable
--range 2 to 118 ipm
Table travel per handwheel rotation 0.39"/rev
Table swivel angle range +5 to -5 degrees
In-feed per grad of handwheel 0.0002"
In-feed per handwheel revolution 0.1"
Wheelhead swivelling angle +/- 30 degrees
Electrics 460/3/60
Weight, approx 12,100 lbs.
Dimensions (L x W x H) 190" x 83" x 77"

FEATURES:
By utilizing a PLC control, LCD touch screen, stepping motor for infeed
and an advanced hydraulic system, these quality and versatile grinders
assure ease of operation, precision and performance.

The auto grinding cycle consist of the wheelhead rough grinding, fine
griding, sparking out and retracting to a preset position at the end of the
cycle. Simply press cycle start to return the start griding position and
duplicate the previous cycle.

EQUIPPED WITH:
Motorized workhead, Coolant system with paper filter, Levelling pads
Splash guards, Diamond wheel dresser with holder, Tailstock, Live center
Two (2) each 2-point steady rests, Balancing stand
5C collet closure (manual)
