16", BLANCHARD, No. 11, 11" wheel, 15 HP, 0.465" chuck, 1955   Our stock number: 6797

16 , BLANCHARD, No. 11, 11 wheel, 15 HP, 0.465 chuck, 1955

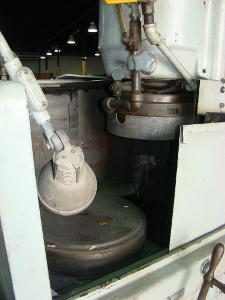

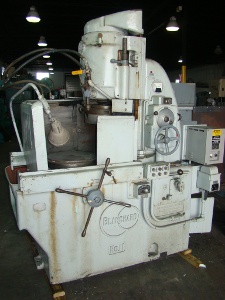

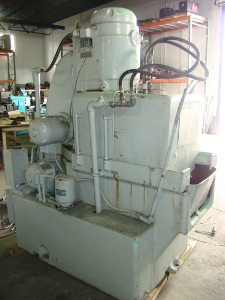

Click on picture below for larger version
16 , BLANCHARD, No. 11, 11 wheel, 15 HP, 0.465 chuck, 195516 , BLANCHARD, No. 11, 11 wheel, 15 HP, 0.465 chuck, 1955

Model number 11
Year of manufacture 1955

SPECIFICATIONS:
Grinding wheel diameter 11"
Magnetic chuck diameter 16"
Maximum turning diameter inside guards 25"
Maximum height under new wheel 12"
Magnetic chuck grinding speeds 15, 24, 41 and 64 rpm
Feed range 0.004" to 0.070" per min.
Grinding wheel motor 15 HP
Electrics 220/440/3/60
Weight, approx. 6,000
Dimensions (L x W x H) 76" x 46" x 88"

EQUIPPED WITH:
16" electromagnetic chuck (0.465" chuck life remaining)
Neutrol chuck control, Coolant system, Water guards,
Wheel dresser holder
