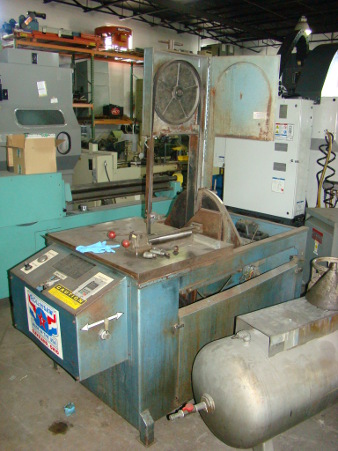

14" x 20", ROLL-IN, TF1420, tilting frame, 1" blade, 2 HP, 2006   Our stock number: 6798

14 x 20 , ROLL-IN, TF1420, tilting frame, 1 blade, 2 HP, 2006

Model number TF1420
Year of manufacture 2006

SPECIFICATIONS:
Horizontal capacity 14"
Vertical capacity 20"
Vertical capacity @ 45 degrees 13"
Blade speed--number Inf. variable
Blade speed--range 70 to 400 SFPM
Working surface 32-1/4" x 26-1/4"
Hydraulic tilt--left 45 deg
--right 45 deg
Main motor 2 HP
Blade length (L x W x thickness) 155" x 1" x 0.035"
Electrics 220/440/3/60
Weight, apporx. 1,400 lbs.
Dimensions (L x W x H) 76" x 38" x 82"

EQUIPPED WITH:
Infinitely adjustable aor over hydraulic cylinder for feed control
Tilting column for straight and miter cutting
Quick action vise, Blade cleaning brush
Coolant--blade misting system
