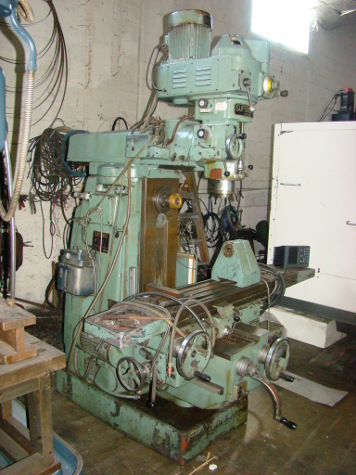

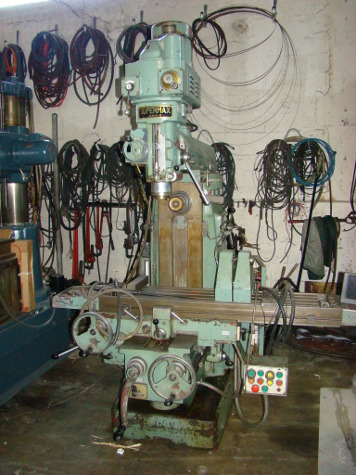

SUPERMAX, #YC-2GS, #40 horz. spindle & turret head, DRO, auto feed, 1981   Our stock number: 6823

SUPERMAX, #YC-2GS, #40 horz. spindle & turret head, DRO, auto feed, 1981

Click on picture below for larger version
SUPERMAX, #YC-2GS, #40 horz. spindle & turret head, DRO, auto feed, 1981SUPERMAX, #YC-2GS, #40 horz. spindle & turret head, DRO, auto feed, 1981SUPERMAX, #YC-2GS, #40 horz. spindle & turret head, DRO, auto feed, 1981

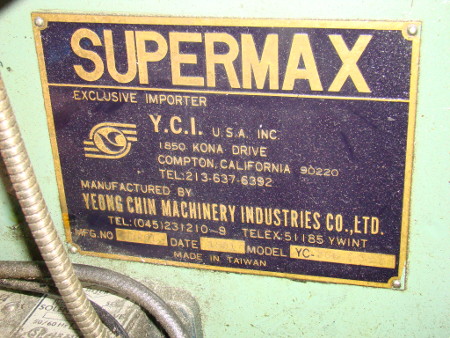

Model YC-2GS
Year of Manufacture 1981

SPECIFICATIONS:

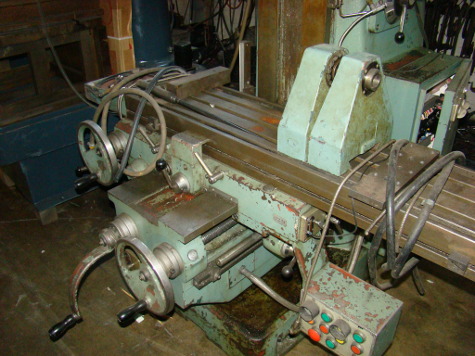

Table working size 51.2" x 11"
Table travel--longitudinal 39.4"
--cross 14.2"
--vertical 17.7"
Table feeds--number
--longitudinal & cross 1/2 to 23-3/4 ipm
Rapid traverse--longitudinal & cross 118 ipm
--vertical 31-1/2 ipm


HORIZONTAL SPINDLE:
Spindle taper #40 taper
Number of speeds 9
Range of speeds 85 to 1300 rpm
Main spindle motor 5 HP

VERTICAL SPINDLE:
Main motor 5 HP
Number of speeds Variable
Range of speeds 75 to 4,220 rpm
Spindle nose taper #40 taper
Quill feeds, 3 .0015, .005 & .003 ipr
Quill travel 5-1/2"
Swivelling angle of head (left & right) 90 degrees

Electrics 220/440/3/60
Machine weight 5,720 lbs
Dimensions (L x W x H) 74" x 62" x 94"

EQUIPPED WITH:
Horizontal arbor supports with arbor
Coolant system, One shot lubrication
Bijur #UBA2 spraymist coolant unit
Acu-Rite 3 axis digital readout system
