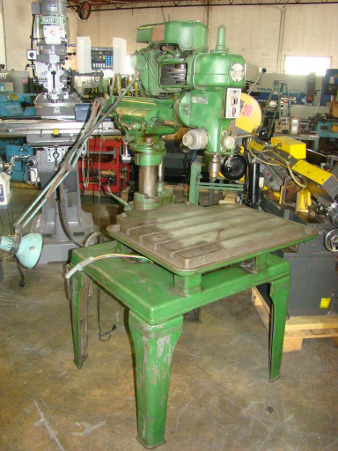

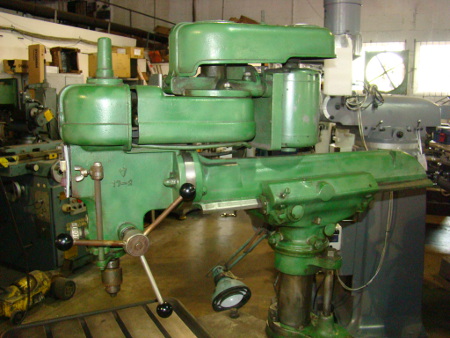

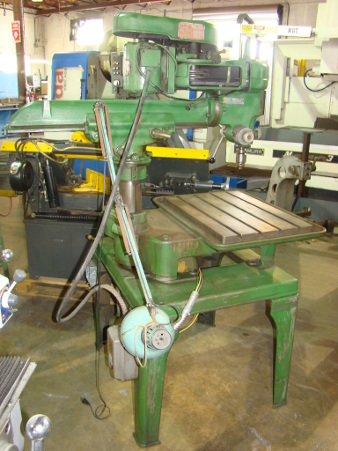

1/2", ROCKWELL, No. 65-250, 30" x 3-3/4" column, manual, 1/2 HP, floor stand   Our stock number: 6824

1/2 , ROCKWELL, No. 65-250, 30 x 3-3/4 column, manual, 1/2 HP, floor stand

Click on picture below for larger version
1/2 , ROCKWELL, No. 65-250, 30 x 3-3/4 column, manual, 1/2 HP, floor stand1/2 , ROCKWELL, No. 65-250, 30 x 3-3/4 column, manual, 1/2 HP, floor stand1/2 , ROCKWELL, No. 65-250, 30 x 3-3/4 column, manual, 1/2 HP, floor stand

SPECIFICATIONS:
Drilling capacity--mild steel 3/8"
--cast iron 1/2"
Distance from spindle center to column
--maximum 30"
--minimum 13"
Distance from spindle nose to table
--maximum 24-3/16"
--minimum 3-1/16"
Ram travel 17"
Vertical travel of head 10"
Column diameter 3-3/4"
Table size 18" x 26"
Spindle speeds--number 16
--range 175-8200 rpm
Drill chuck capacity 0 to 1/2"
Spindle taper #2MT
Maximum quill movement 6"
Spindle motor (two speed) 1/2 HP
Electrics 220/440/3/60
Net weight 943 lbs.
Dimensions (L x W x H) 46" x 34" x 74"

EQUIPPED WITH:
Floor stand, Table raising mechanism, Jacobs 1/2" capacity drill chuck
Head tilts 90 degrees: 45 deg left, vertical, 45 deg right
