10" x 10", KELLER, No. 5 Hy-Duty, 18" blade, 1-1/2 HP, 1974, s/n 24631   Our stock number: 6829

10 x 10 , KELLER, No. 5 Hy-Duty, 18 blade, 1-1/2 HP, 1974, s/n 24631

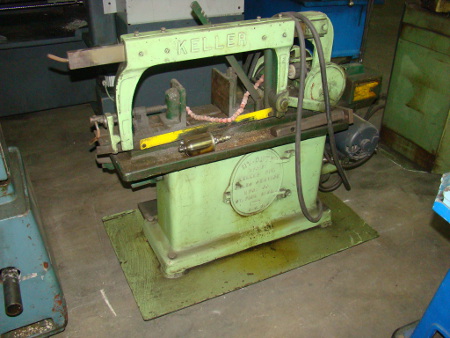

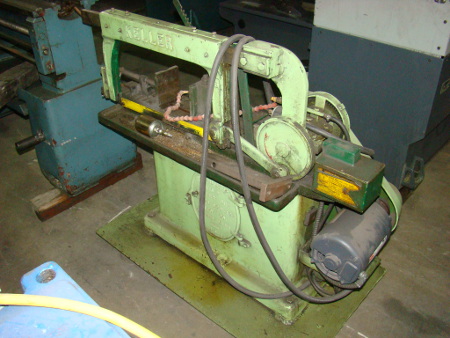

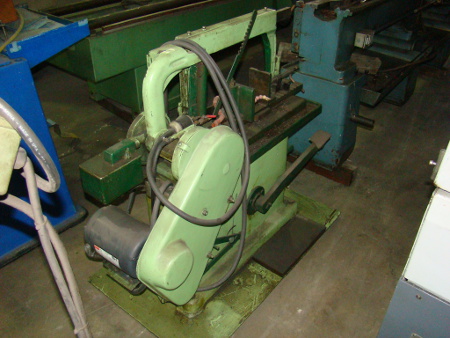

Click on picture below for larger version
10 x 10 , KELLER, No. 5 Hy-Duty, 18 blade, 1-1/2 HP, 1974, s/n 2463110 x 10 , KELLER, No. 5 Hy-Duty, 18 blade, 1-1/2 HP, 1974, s/n 24631

Model number 5 Hy-Duty

SPECIFICATIONS:
Capacity--round 10"
--rectangular 10" x 10"
--miter @ 45 degrees 5-1/2"
Blade speeds--number Variable speed
--range 70 to 150 SFPM
Feed pressure (spring tension) 0 to 200 lbs.
Blade length 18"
Length of stroke 5-3/4"
Feed control working pressure 0 to 200 lbs.
Motor power 1-1/2 HP
Motor--electrics 208-220/440/3/60Hz
Dimensions (L x W x H) 18" x 51" x 45"
Weight, approx. 557 lbs.

ACCESSORIES:
Mechanical feed, Quick set angle vise, Automatic shut-off
