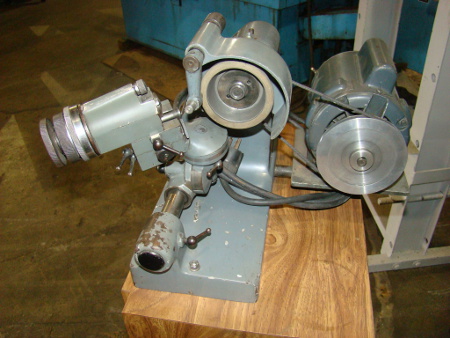

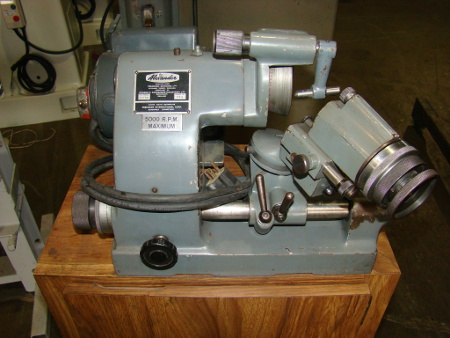

No. 2CGD, ALEXANDER, Single Lip Grinder, 5/8" capacity, collets   Our stock number: 6835

No. 2CGD, ALEXANDER, Single Lip Grinder, 5/8 capacity, collets

Click on picture below for larger version
No. 2CGD, ALEXANDER, Single Lip Grinder, 5/8 capacity, colletsNo. 2CGD, ALEXANDER, Single Lip Grinder, 5/8 capacity, colletsNo. 2CGD, ALEXANDER, Single Lip Grinder, 5/8 capacity, colletsNo. 2CGD, ALEXANDER, Single Lip Grinder, 5/8 capacity, collets

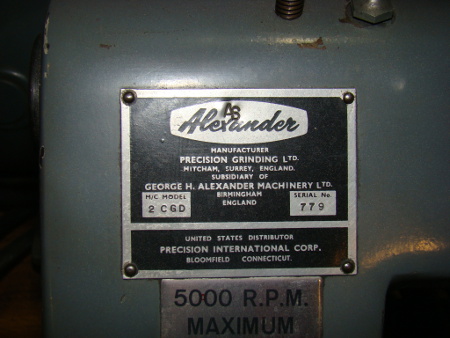

Model number 2CGD

SPECIFICATIONS:
Spindle drive motor 1/4 HP
Motor speed 1,725 rpm
Spindle speed 5,000 rpm
Maximum collet capacity 5/8"
Maximum radius ground 0.4"
Max. lateral traverse of index head slide 0.4"
Max. long. traverse of index head slide 1.57"
Max. relief angle 45 degrees
Electrics 115/1/60
Weight, approx. 80 lbs.

EQUIPPED WITH:
Diamond dresser with wheel

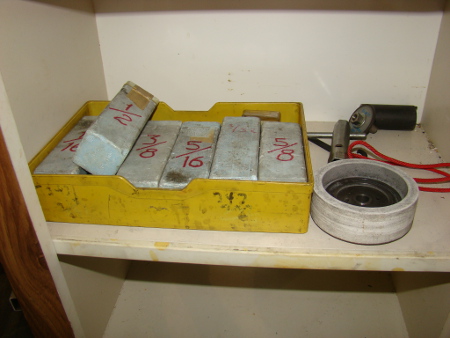

Assorted collets: 1/16", 3/32", 1/8", 3/16", 1/4", 5/16", 3/8", 1/2" and 5/8"
