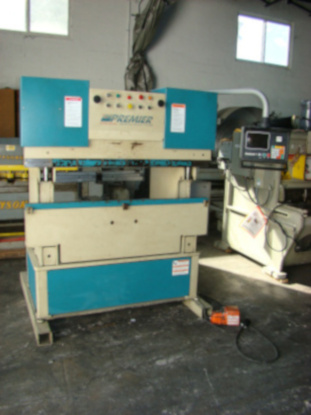

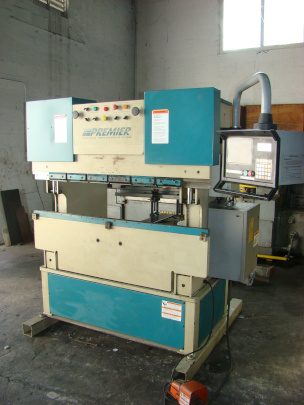

35 Ton, PREMIER, #535-2, 5'OA, 42"BH, 5" stk, 5 HP, Hurco 2X BG, 1997   Our stock number: 6931

35 Ton, PREMIER, #535-2, 5'OA, 42 BH, 5 stk, 5 HP, Hurco 2X BG, 1997

Click on picture below for larger version
35 Ton, PREMIER, #535-2, 5'OA, 42 BH, 5 stk, 5 HP, Hurco 2X BG, 199735 Ton, PREMIER, #535-2, 5'OA, 42 BH, 5 stk, 5 HP, Hurco 2X BG, 199735 Ton, PREMIER, #535-2, 5'OA, 42 BH, 5 stk, 5 HP, Hurco 2X BG, 1997
35 Ton, PREMIER, #535-2, 5'OA, 42 BH, 5 stk, 5 HP, Hurco 2X BG, 199735 Ton, PREMIER, #535-2, 5'OA, 42 BH, 5 stk, 5 HP, Hurco 2X BG, 199735 Ton, PREMIER, #535-2, 5'OA, 42 BH, 5 stk, 5 HP, Hurco 2X BG, 1997

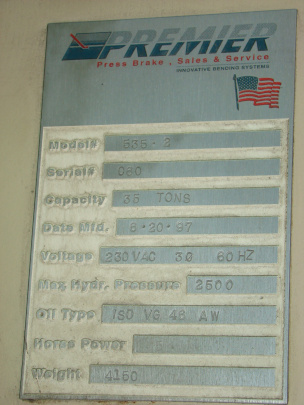

Model number 535-2
Year of manufacture 1997

SPECIFICATIONS:
Capacity 35 tons
Length of bed and ram, overall 60"
Distance between housing, actual 42"
Bending capacity 5' x 11 ga.
Ram stroke 5"

Ram open height 11-1/2"
Depth of throat 5"
Ram approach speed 206 IPM
Ram slow speed 24 IMP
Ram return speed 262 IPM
Motor 5 HP
Maximum pressure 2,850 psi
Electrics 230/3/60
Weight, approx. 4,150 lbs.
Dimensions (L x W x H) 68" x 54" x 78"

EQUIPPED WITH:
HURCO Autobend 7 2 axis CNC backgauge, Lower die holder
Foot control and dual palm buttons, Ram return button
Mode selector for Jog, Manual or Auto operations, Double stop circuit

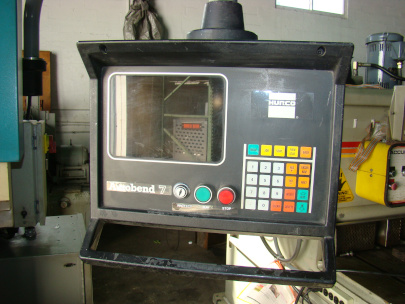

HURCO AB-7 CONTROL SPECS:
Programs 600
Number of bends 2400
Angle resolution 0.1 degrees
Gage travel 24"
Vertical travel 6"
Horizontal adjustment 6"
Gauge speed 800 IPM
Gauge repeatability +/- 0.002"
Power 115 volts
