9 STND, LOCKFORMER, TRIPLEX Cleatformer, 22 ga, Pitts/3in1 rolls/"S" & Cleat '04   Our stock number: 6956

9 STND, LOCKFORMER, TRIPLEX Cleatformer, 22 ga, Pitts/3in1 rolls/ S & Cleat '04

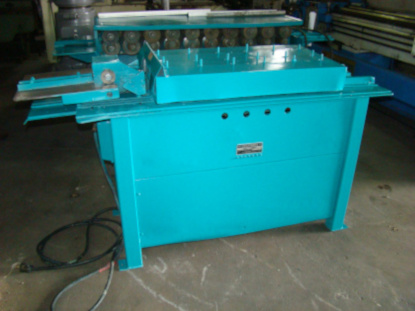

Click on picture below for larger version
9 STND, LOCKFORMER, TRIPLEX Cleatformer, 22 ga, Pitts/3in1 rolls/ S & Cleat '049 STND, LOCKFORMER, TRIPLEX Cleatformer, 22 ga, Pitts/3in1 rolls/ S & Cleat '049 STND, LOCKFORMER, TRIPLEX Cleatformer, 22 ga, Pitts/3in1 rolls/ S & Cleat '04

Model number Triplex

SPECIFICATIONS:
Drive cleat--inboard 22 to 26 ga
"S" cleat--inboard 22 to 28 ga
Number of stations 9
Speed 100 FPM
Motor 5 HP
Electrics 230/460/3/60
Drive V-belt
Dimensions (L x W x H) 60" x 24" x 40"
Weight, approx. 850 lbs.

EQUIPPED WITH:
Pittsburg rolls, 5/16" pocket, 20 to 28 ga
Combination 3-in-1 rolls: right angle flange, Standard seam and T-connection
Combination "S" and drive cleat cutter attachment

Replacement cost over $28,000.00.
