14" x 44", KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 1985   Our stock number: 6959

14 x 44 , KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 1985

Click on picture below for larger version
14 x 44 , KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 198514 x 44 , KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 198514 x 44 , KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 198514 x 44 , KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 1985
14 x 44 , KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 198514 x 44 , KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 198514 x 44 , KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 198514 x 44 , KIKINDA, #C12-1100, internal spindle, SR, CL, mag chuck, 1985

Model number C12-1100
Year of manufacture 1985

SPECIFICATIONS:
Maximum diameter 14"
Distance between centers 44"
Grinding wheel--OD x W x Bore 19" x 3" x 8"
Spindle drive motor 7.5 HP
Internal spindle motor 2 HP
Hydraulic pump motor 3 HP
Headstock motor 1.5 HP
Coolant motor 1/8 HP
Workhead speeds--number 8
--low range 25 to 265 rpm
Table traverse speeds--number Inf. variable
--range 0.16 to 23 fpm
Electrics 230/460/3/60
Dimensions (L x D x H) 130" x 80" x 84"
Weight, approx. 9,590 lbs.

EQUIPPED WITH:

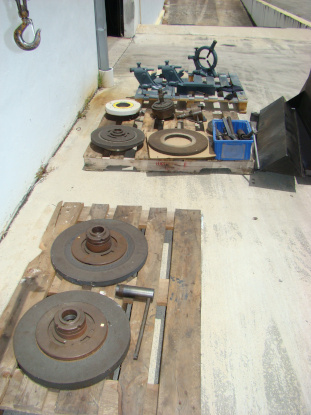

Swing down internal attachment, Several rest, Table mounted dresser
3 and 4 jaw chuck adapters for headstock, Extra wheels with hubs
Coolant system, Pair of diamond wheel dressers
