1/4" x 10', ERMAK, #CNCHVR, hyd., 40" CNCBG, Automec CNC FG, 15 HP, 2007   Our stock number: 6993

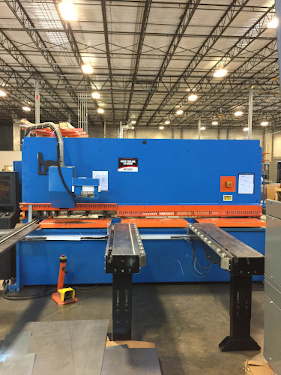

1/4 x 10', ERMAK, #CNCHVR, hyd., 40 CNCBG, Automec CNC FG, 15 HP, 2007

Click on picture below for larger version
1/4 x 10', ERMAK, #CNCHVR, hyd., 40 CNCBG, Automec CNC FG, 15 HP, 20071/4 x 10', ERMAK, #CNCHVR, hyd., 40 CNCBG, Automec CNC FG, 15 HP, 20071/4 x 10', ERMAK, #CNCHVR, hyd., 40 CNCBG, Automec CNC FG, 15 HP, 20071/4 x 10', ERMAK, #CNCHVR, hyd., 40 CNCBG, Automec CNC FG, 15 HP, 2007

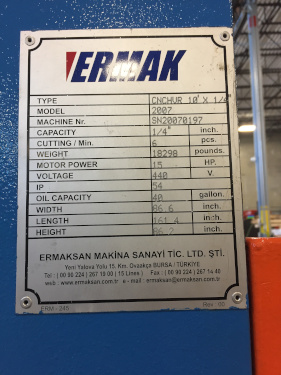

Model number CNCHVR 10' x 1/4"
Year of manufacture 2007

SPECIFICATIONS:
Maximum cutting length 122"
Maximum shearing capacity--mild steel 1/4"
--stainless 5/32"
Number of holddowns 14
Rake angle 0.5 to 1.5 degrees
Cuts per minute 16 to 24 SPM
Backguage length 39.4"
Main motor power 15 HP
Electrics 460/3/60
Dimensions (L x W x H) 152" x 87" x 87"
Net weight, approx. 18,301 lbs

STANDARD FEATURES & ACCESSORIES:
39.4" CYBLEC DNC 60 DNC front-operated power backgauge

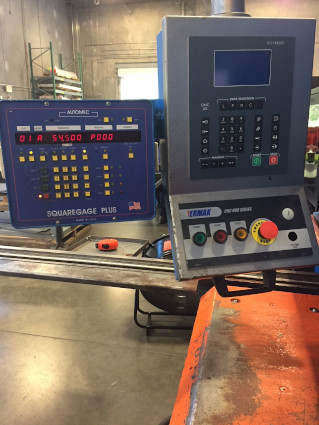

AUTOMEC Sqauregage Plus CNC front gage
CNC controlled rake and gap adjustment
10' squaring arm with scale
Electronic foot switch on a trailing lead
