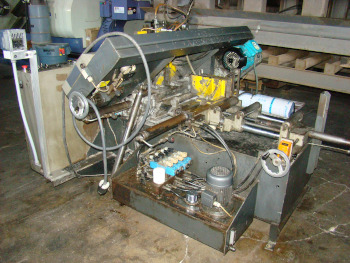

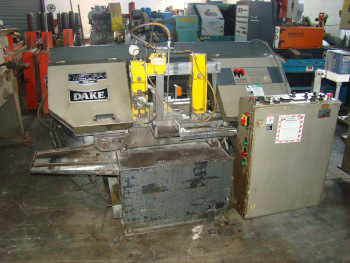

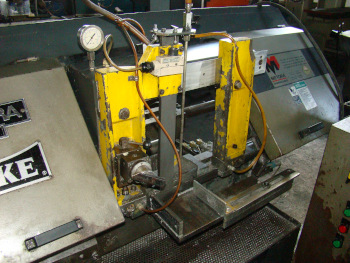

11" x 10", METORA, No. VMB280, auto., 1-1/4" blade, 3 HP, 1990   Our stock number: 7012

11 x 10 , METORA, No. VMB280, auto., 1-1/4 blade, 3 HP, 1990

Click on picture below for larger version
11 x 10 , METORA, No. VMB280, auto., 1-1/4 blade, 3 HP, 199011 x 10 , METORA, No. VMB280, auto., 1-1/4 blade, 3 HP, 199011 x 10 , METORA, No. VMB280, auto., 1-1/4 blade, 3 HP, 1990
11 x 10 , METORA, No. VMB280, auto., 1-1/4 blade, 3 HP, 199011 x 10 , METORA, No. VMB280, auto., 1-1/4 blade, 3 HP, 1990

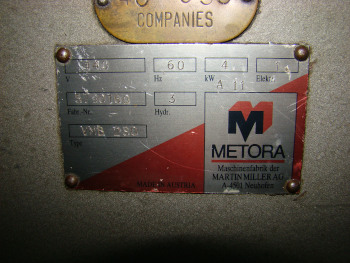

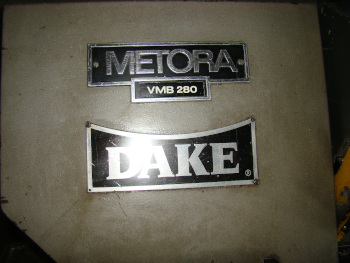

Model VMB 280
Year of Manufacture 1990

SPECIFICATIONS:
Capacity--rectangular 10" x 11" (255 x 280mm)
--round 11" (280mm)
Blade dimensions (L x W x T) 150" x 1-1/4" x .042" (3800x32x1.1mm)
Drive--main motor 3 HP (2.2KW)
Hydraulic motor 1 HP (0.75KW)
Coolant pump motor 1/4 HP (0.11KW)
Speed--number Variable
--range (fpm) 79 to 440
Cutting length--single index 20" (510mm)
--multiple index 180" (4590mm)
Machine dimensions (L x W x H) 81" x 76" x 48"
Net weight 3,200 lbs
Electrics 440/3/60

EQUIPPED WITH:
Fully automatic, Hydraulic clamps, Piece counter

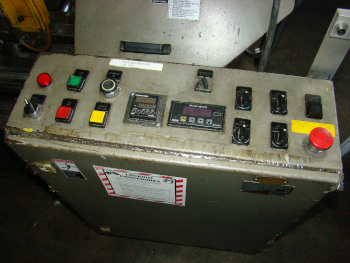

Variable feed and speed control, Coolant system
Cutting length controller, Electronic chip brush
