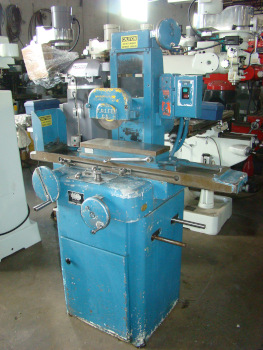

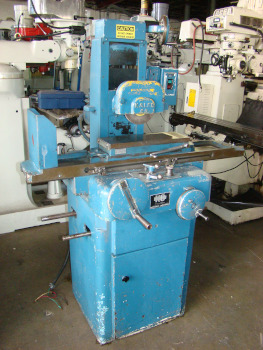

6" x 18", K O LEE, No. S718H, long. axis hyd., PMC, 1967   Our stock number: 7032

6 x 18 , K O LEE, No. S718H, long. axis hyd., PMC, 1967

Click on picture below for larger version
6 x 18 , K O LEE, No. S718H, long. axis hyd., PMC, 19676 x 18 , K O LEE, No. S718H, long. axis hyd., PMC, 19676 x 18 , K O LEE, No. S718H, long. axis hyd., PMC, 19676 x 18 , K O LEE, No. S718H, long. axis hyd., PMC, 1967

SPECIFICATIONS:
Table working surface 6" x 19"
Table travel--longitudinal 20"
--crossfeed 7-1/8"
Longitudinal hydraulic feed 3/4 to 40 fpm
Handwheel graduation--vertical 0.0001" (.05"/rev)
--crossfeed 0.001" (0.1"/rev)
Wheel capacity (OD x hole x width) 8" x 3/4" x 1-1/4"
Main motor 1 HP
Electrics 208-220/440/3/60
Dimensions (L x W x H) 48" x 42" x 68"
Weight, approx. 1,400 lbs.

EQUIPPED WITH:
Hydraulic longitudinal operation

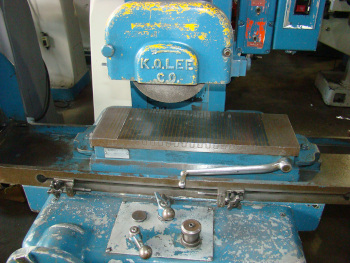

6" x 18" permanent magnetic chuck
