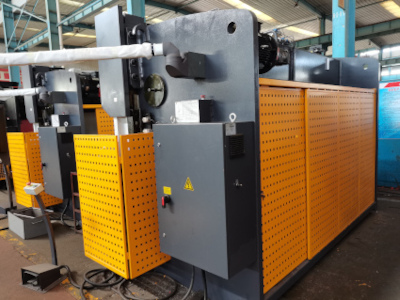

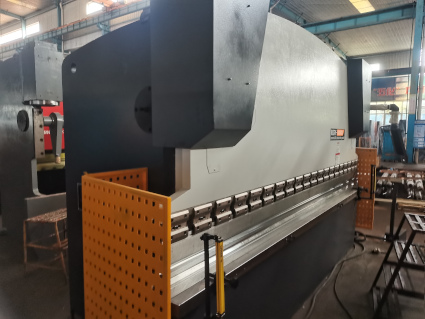

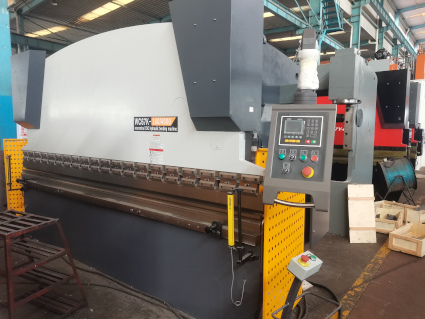

176 Ton, FICOM, #WC67K-176x4000, 157"OAL, 123" BH, 20 HP, Stop-N-Go, New   Our stock number: 7142

176 Ton, FICOM, #WC67K-176x4000, 157 OAL, 123 BH, 20 HP, Stop-N-Go, New

Click on picture below for larger version
176 Ton, FICOM, #WC67K-176x4000, 157 OAL, 123 BH, 20 HP, Stop-N-Go, New176 Ton, FICOM, #WC67K-176x4000, 157 OAL, 123 BH, 20 HP, Stop-N-Go, New176 Ton, FICOM, #WC67K-176x4000, 157 OAL, 123 BH, 20 HP, Stop-N-Go, New

OPTIONAL ACCESSORIES:
Estum 2 axis back guage. . . . . . . . . . . . . . . . . . . . . . $ 5,000.00

SPECIFICATIONS:
Table length 157" (4000mm)
Distance between housing 123" (3140mm)
Throat depth 13" (330mm)
Ram stroke 7.8" (200mm)
Maximum open height 18.3" (465mm)
Stoke adjustment 5.9" (150mm)
Bending speeds--rapid approach 3.94 ips
--bending 0.35 ips
--return 3.54 ips
Maximum stroke rate 6 spm
Motor 20 HP (15KW)
Electrics 230/3/60 or 460/3/60
Dimensions (L x W x H) 185" x 86" x 100"
Weight, approx. 27,720 lbs (12,600 Kgs)

STANDARD FEATURES & ACCESSORIES:

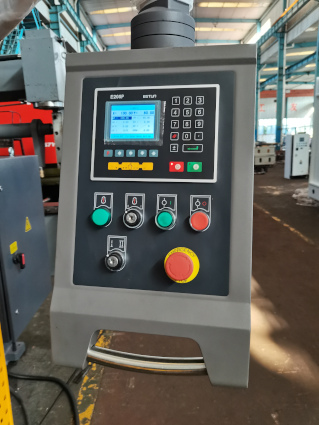

ESTUN E200P touch-N-go back gauge system
Hydrualic valves manufactured by Bosch-Rexroth
Seals manufactured by Valque (Japan) and Fietz (Germany)
Three modes of operation: inch, single or continuous
Full length gooseneck punch and 4 way die
Includes full length filler block
LNTech front light curtain, Rear metal sliding safety doors
Full charge of hydraulic oil
