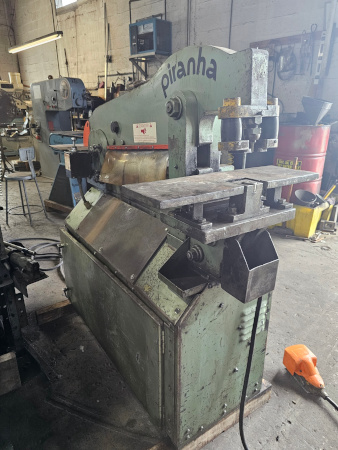

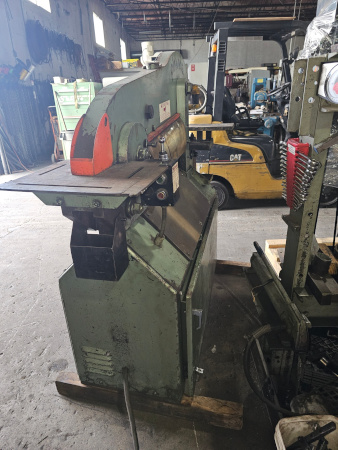

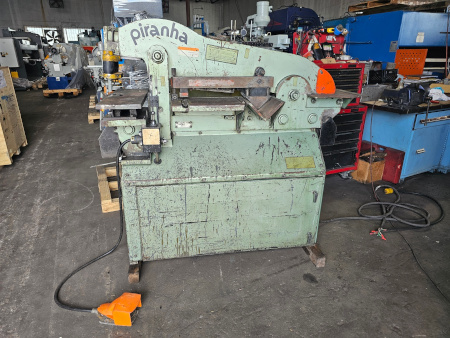

50 ton, PIRANHA, 5" X 5" X 3/8" angle, 14" X 5/8" shear, Hyd, brake att, BG,1991   Our stock number: 7193

50 ton, PIRANHA, 5 X 5 X 3/8 angle, 14 X 5/8 shear, Hyd, brake att, BG,1991

Click on picture below for larger version
50 ton, PIRANHA, 5 X 5 X 3/8 angle, 14 X 5/8 shear, Hyd, brake att, BG,199150 ton, PIRANHA, 5 X 5 X 3/8 angle, 14 X 5/8 shear, Hyd, brake att, BG,199150 ton, PIRANHA, 5 X 5 X 3/8 angle, 14 X 5/8 shear, Hyd, brake att, BG,199150 ton, PIRANHA, 5 X 5 X 3/8 angle, 14 X 5/8 shear, Hyd, brake att, BG,1991

Model number P3
Year of manufacture 1991

SPECIFICATIONS:
Tonnage 50 tons
Throat 8"
Maximum punch 13/16" thru 3/4" plate
Table size (standard) 8" x 10"
Cutting length--maximum length 14" x 5/8"
-- 10" x 3/4"
--Maximum thickness 4" x 1"
Maximum angle @ 90 degree 5" x 5" x 3/8"
Coper 2-3/4" x 4" x 1/4"
Motor power 10 HP
Electrics--standard 230/460/3/60
Overll dimensions (L x W x H) 70" x 30" x 60"
Net weight 2,600 lbs

EQUIPPED WITH:
Coper blades, Assorted punches, Hold down assembly, Angle blades
Punching attachment with automatic urethane punch stripper
Shear blades, 72" material stop, 8" press brake attachment
